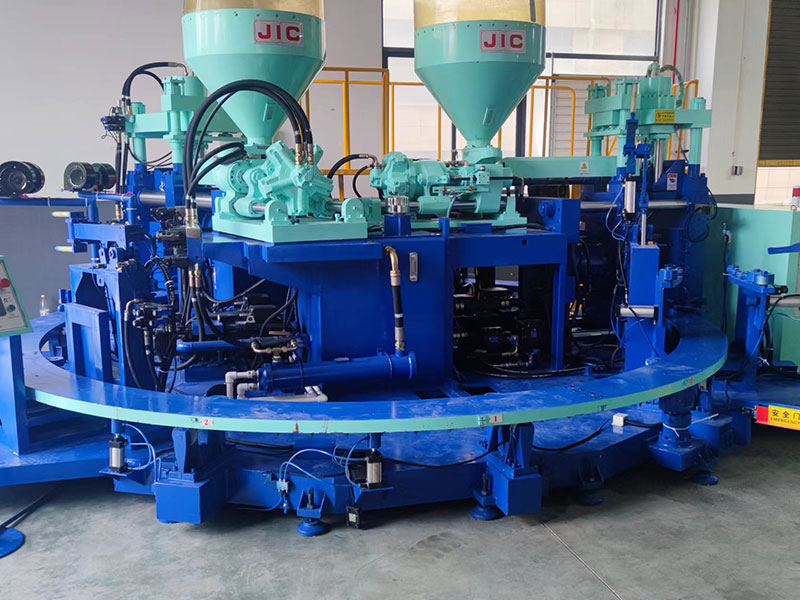

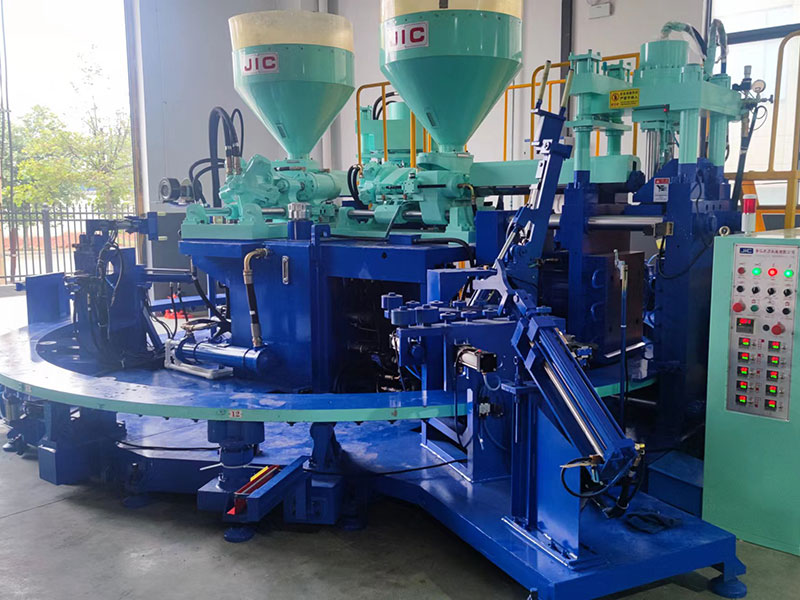

Two Color TPE Shoe Cover Injection Molding Machine
Rotary injection molding machine for producing shoe covers and galoshes
Two Color TPE Shoe Cover Injection Molding Machine
Rotary injection molding machine for producing shoe covers and galoshes
- The TPE injection molding machine is used to produce rain boots and shoe covers in one color and two colors;
- The mold closing process is stable and reliable, and the clamping force is balanced to ensure high product quality;
- The structure of molds is simple for easy replacement and maintenance.
Raw material: TPE
Applications:

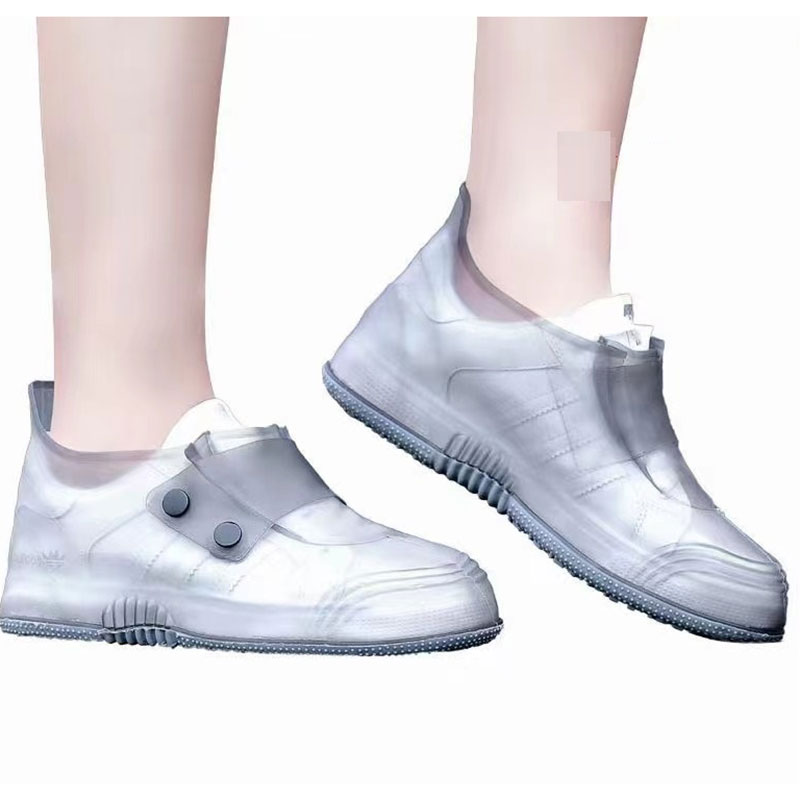

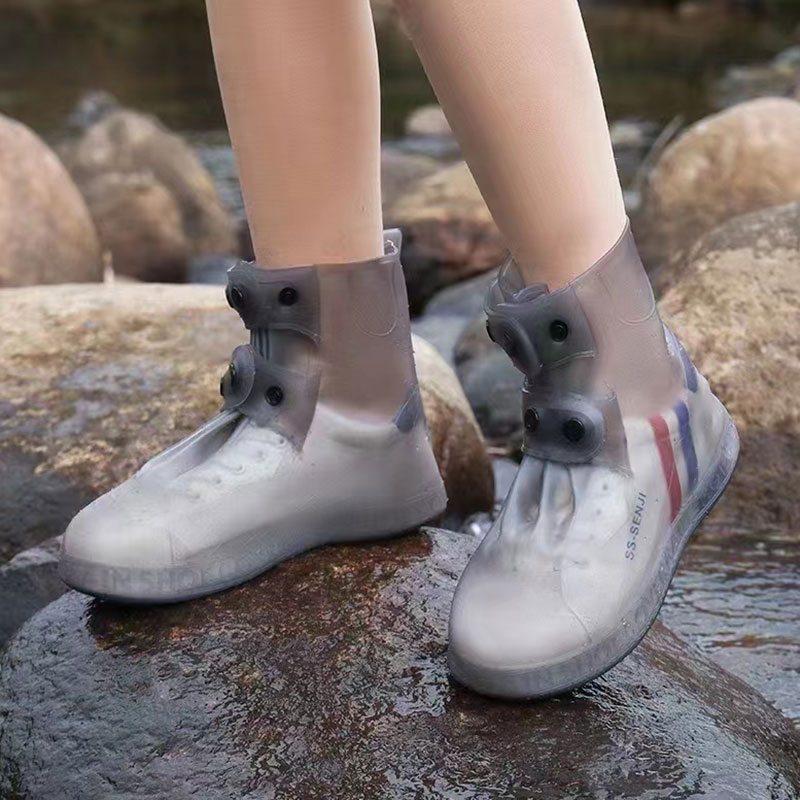

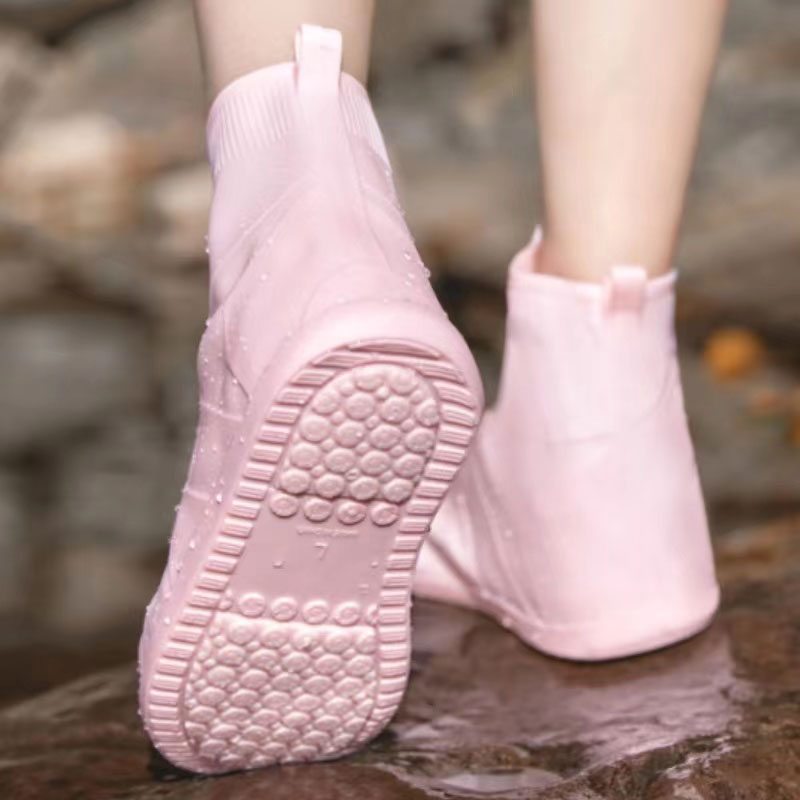

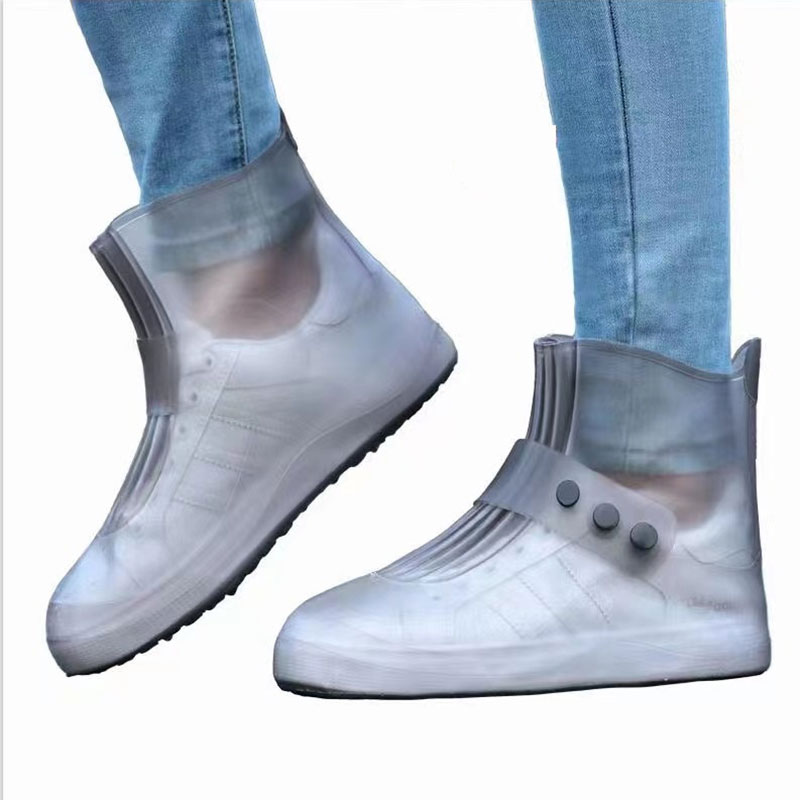

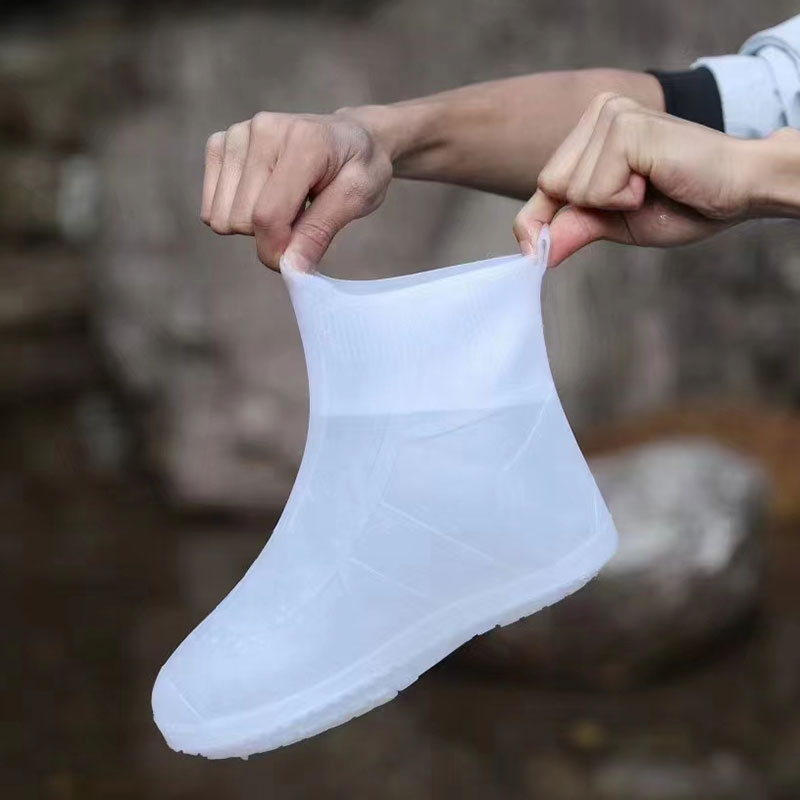

one-color and two-color shoe covers
| Item | Unit | Specifications | |
| Model | | | |
| Raw material | TPE | TPE | |
| Number of stations | 12 (14 or 16) | 12 (14 or 16) | |
| Max. injection volume | cm³/cc | 770, 1270 | 500, 770 |
| Rated injection pressure | kg/cm² | 0-120 | 0-120 |
| Power of electric heating | kW | 13+15 | 9+13 |
| Temperature setting | stage | 5 | 5 |
| Screw rotational speed | RPM | 0-150 | 0-150 |
| Screw diameter | mm | Ø70,Ø90 | Ø55,Ø70 |
| Motor power | kW | 15,22 | 15,18.5 |
| Clamping force | T | 250 | 250 |
| Max. mold size | mm | 680*360*200 | 520*360*200 |
| Machine dimensions | mm | 5500*5050*2450 | 5710*4720*2170 |
| Gross weight | kg | 18500 | 16800 |
- The injection molding machine is widely used to make TPE shoe cover in one color and two colors;
- The TPE injection machine is equipped with an industrial interface, a PLC and a touchscreen;
- The dual-ratio hydraulic control valve precisely controls the injection pressure and the rate of flow to produce high-quality shoe covers;
- The digital measurement system ensures stable production performance;
- The touch panel is designed to be simple and easy to operate;
- Our fabulous injection machine is equipped with a robotic arm to realize fully automatic production;
- The servomotor system reaches the same performance with less energy consumption compared to traditional motors.
A typical two-color TPE overshoe injection molding machine uses two injection units and specialized two-color molds for multi-stage injection molding. The first component forms the product’s main body or base layer, followed by injection of the second component which forms other functional areas, such as soles, anti-slip areas, decorative elements and logos.
Clear color separation, part wall thickness and color distribution are determined by the mold runner, injection sequence and process parameters.
The two TPE materials must provide good adhesion and have compatible processing temperature ranges.
Before starting production, mold trial and peel adhesion test are recommended, in order to prevent delamination, color bleeding and poor color separation.
The quality of overshoes is affected by softness, tear resistance, flex resistance, and demolding properties. However, TPE materials’ hardness, flow properties, shrinkage, abrasion resistance and rebound resilience may change with the TPE formulation.
Equipment configurations and process parameters should be determined by TPE grades, shore hardness, melt flow behavior and wall thickness of the final product.
Before processing SBS, SEBS, and TPR materials, customers should provide us with the material technical data sheet (TDS) so that we can recommend suitable equipment configurations and process parameters.
For recycled materials, their effects on strength, color variation and interlayer adhesion should be evaluated.
Ancillary machines are provided to improve the productivity of shoe making machine.
