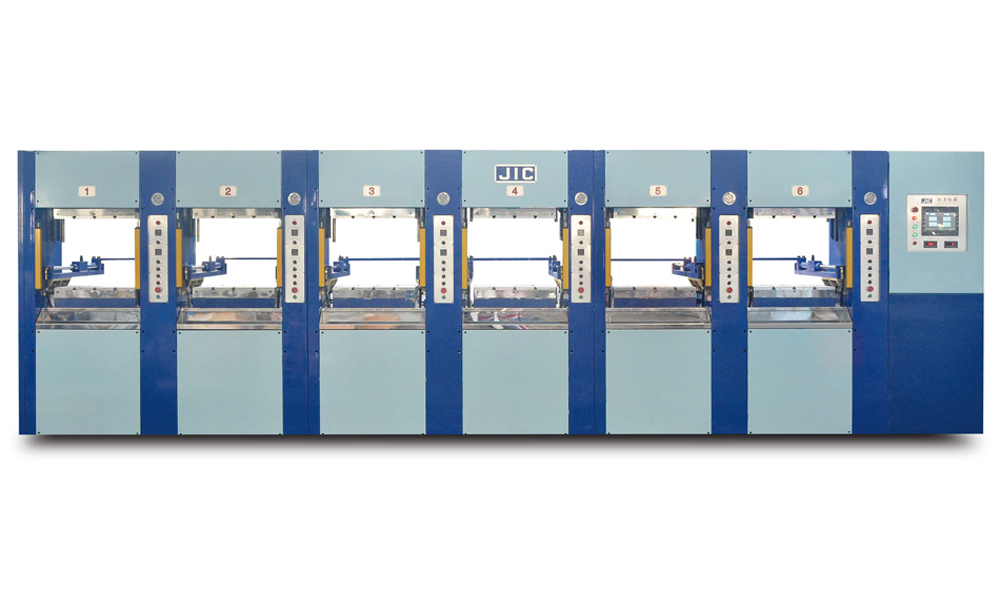

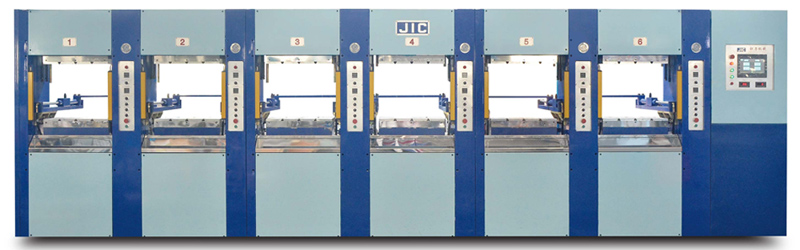

Two Color EVA Compression Molding Machine (EVA Pouring)
Two Color EVA Compression Molding Machine (EVA Pouring)
Raw material : EVA
| ltem | Unit | Specifications | |
| Model | |||
| Raw material | EVA | EVA | |
| Number of stations | 6 | 8 | |
| Clamping force | T | 100 | 100 |
| Mold plate size | mm | 600*400 | 600*400 |
| Layer distance | mm | 500 | 500 |
| Mold height | mm | 80-180 | 80-180 |
| Motor power | kw | 16.4 | 16.4 |
| Mold heat method | Electric heating | Electric heating | |
| Heating power | kW | 72 | 96 |
| Machine dimensions | mm | 8000 x 1500 x 2100 | 10000 x 1500 x 2100 |
| Gross weight | kg | 12000 | 15000 |
- Specifically designed for manufacturing two-color EVA products with high precision and quality.
- Equipped with an advanced industrial touchscreen interface, PLC program control, and easy touch adjustments for seamless operation.
- Centralized hydraulic system with an integrated oil tank filter extends the lifespan of hydraulic components.
- Combines renowned international and domestic hydraulic brands for reliable performance.
- Features a servo system for high efficiency and energy savings.
- Compact, well-organized structure ensures user-friendly operation and easy maintenance.
- Integrated safety light curtain safeguards operators during use and installation.

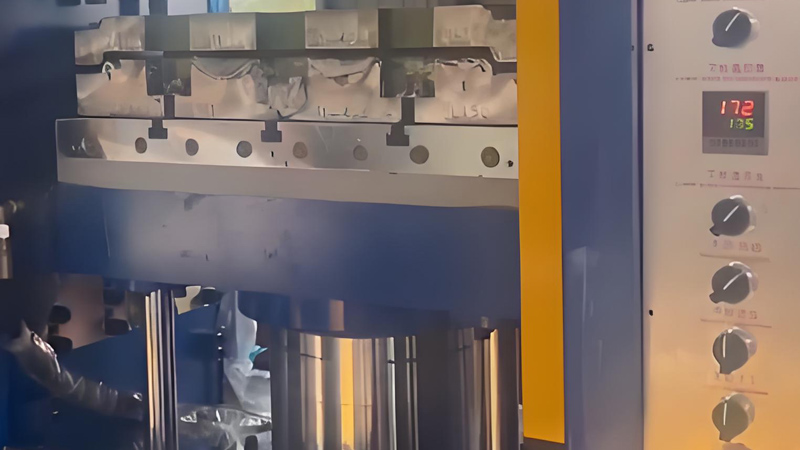

A typical two-color EVA compression molding machine uses specialized two-color molds, where EVA compounds or preforms in two different colors are placed in accordance with the product design. After mold closing, the materials undergo heating, pressure application and holding. During the process, the materials flow, crosslink, foam and eventually form a two-color part.
Color distribution, interface location, and interface geometry are determined by mold design and EVA preforms.
During actual production, the charge weight, mold temperature, pressure level, and pressure holding time need to be managed to prevent color bleeding, misalignment, short shots or poor interlayer adhesion.

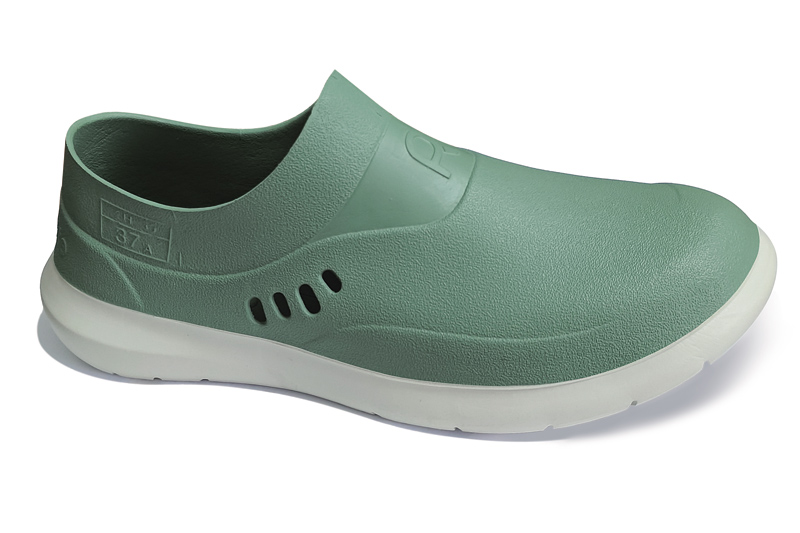

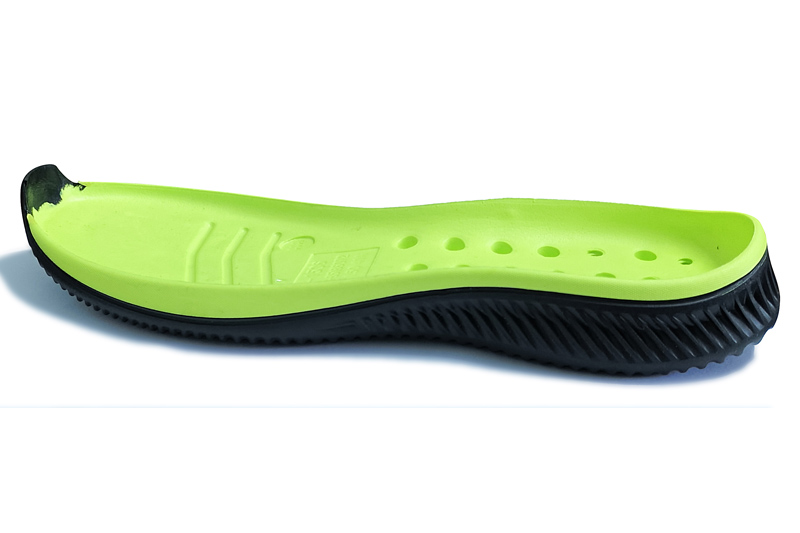

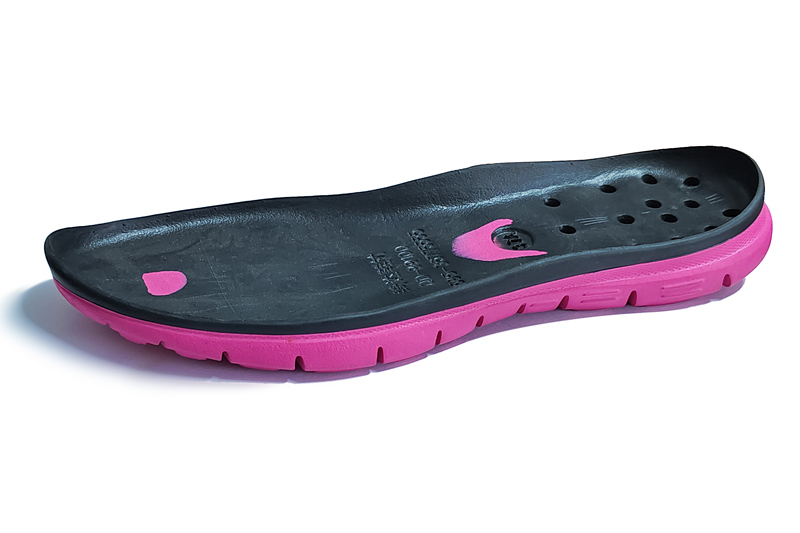

Depending on mold design and EVA formulation, the EVA compression molding machine can be used to produce two-color EVA midsoles, EVA foam soles, EVA outsoles, EVA slippers, EVA sandals, and EVA footwear cushioning components.
Apart from shoes, the EVA compression molding machine can produce certain EVA protective gear, EVA pads, and other EVA foam products, but product dimensions, mold height, expansion ratio, and clamping force should be verified.
When selecting models, customers should provide samples, drawings, and related information, including part weight, EVA formulation and production rate, so that the compatibility of equipment and molds can be verified.
