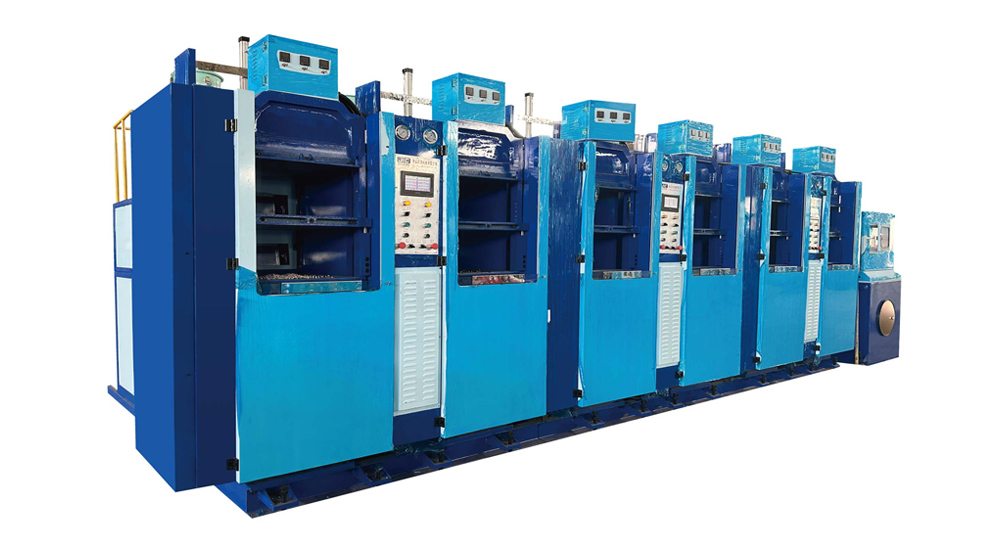

One Color EVA Compression Molding Machine with Automatic Weighing
One Color EVA Compression Molding Machine with Automatic Weighing

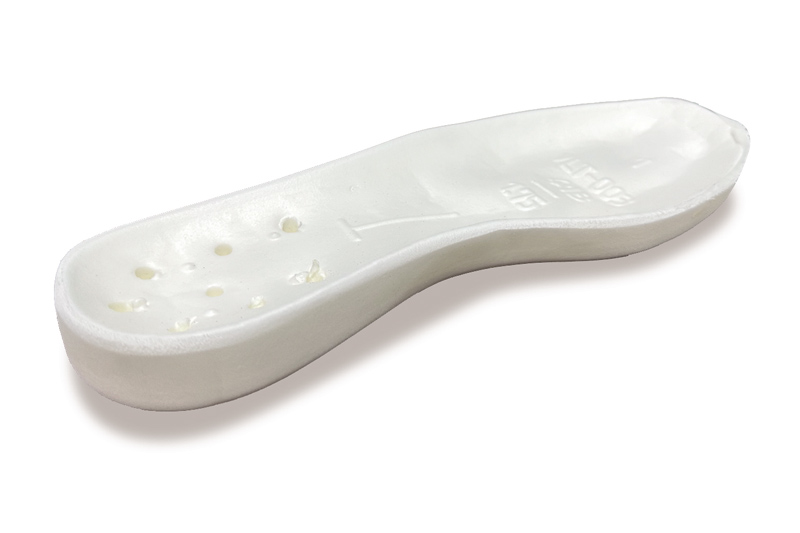

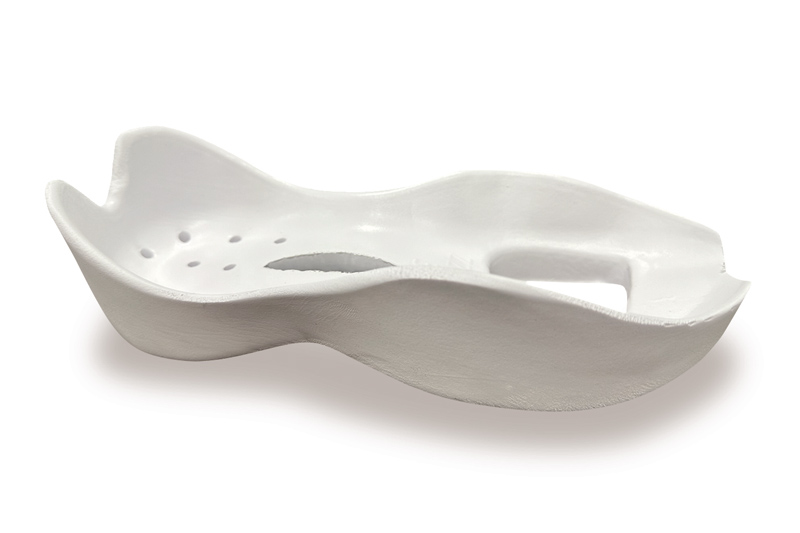

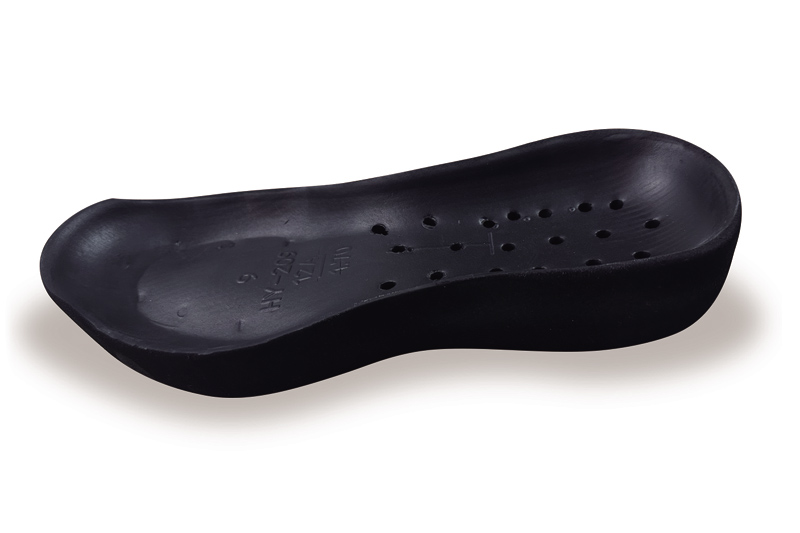

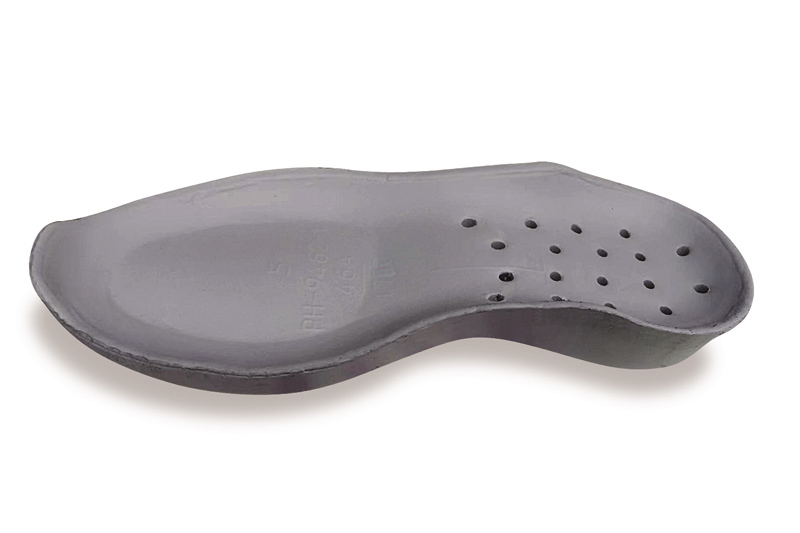

Raw material : EVA
Technical Specifications
| ltem | Unit | Specifications |
| Model | 9M06 | |
| Raw material | EVA | |
| Total pressure | kg/cm | 150 |
| Layer of number | 2 | |
| Number of station | station | 6 |
| Layer distance | mm | 300 |
| Main cylinder stroke (max) | mm | 610 |
| Working pressure | kg/cm | 180 |
| Voltage | 380V 50Hz | |
| Motor power | kW | 16.4+7.2 |
| Heating method | Electric (72kW) | |
| Machine dimensions | mm | 8000* 3200*2670 |
| Gross weight | kg | 21000 |
Features
- Engineered with a unique machine body structure that ensures exceptional durability, preventing cracks or deformation in finished products.
- Centralized hydraulic control system equipped with a filter to prolong the lifespan of hydraulic components.
- Fitted with a PF150 prefill valve for rapid downward movement, enhancing production efficiency.
- Supports both semi-automatic and fully automatic continuous operation, with each function independently adjustable for flexible production.
- Utilizes internationally renowned hydraulic systems combined with advanced PC and PLC controls for precise and reliable performance.
- Features an automatic feeding system with computerized control of individual sole weights, ensuring high precision, significant labor savings, and reduced production costs.
- Incorporates a servo system for energy efficiency and reduced noise levels during operation.
Optional
Ancillary machines are provided to improve the productivity of shoe making machine.
With years of experience in the footwear machinery industry, JIC has established itself as a leading manufacturer for shoe making machines in China. Backed by our team of experienced professionals who have long been engaged in the design and production of footwear manufacturing machinery, we are currently capable of supplying an extensive range of high performance injection molding machines for shoes making, such as rain boot making machine, slipper making machine, casual clog making machine, shoe sole making machine, upper strap making machine, as well as injection molding machine built for making other plastic or rubber items. If you have any questions or concerns about shoe machinery, please contact us today.
