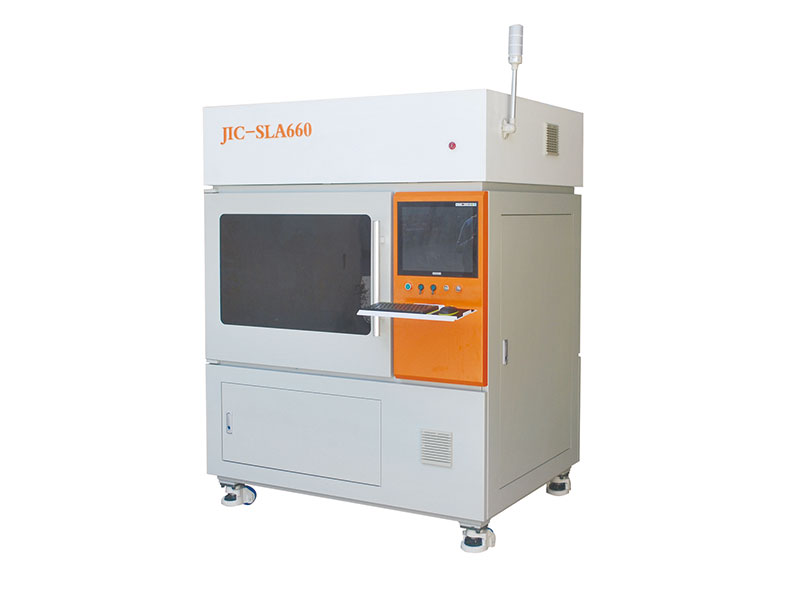

Light Curing Resin 3D Printer
Light Curing Resin 3D Printer
JIC MACHINE provides the outstanding 3D printer with the function of light curing that features high speed, increased efficiency and reliable production. Thanks to the storage function of pre-set parameters, the 3D printer machine is able to precisely print whatever shapes you want.
Material: Photosensitive resin
Applications:

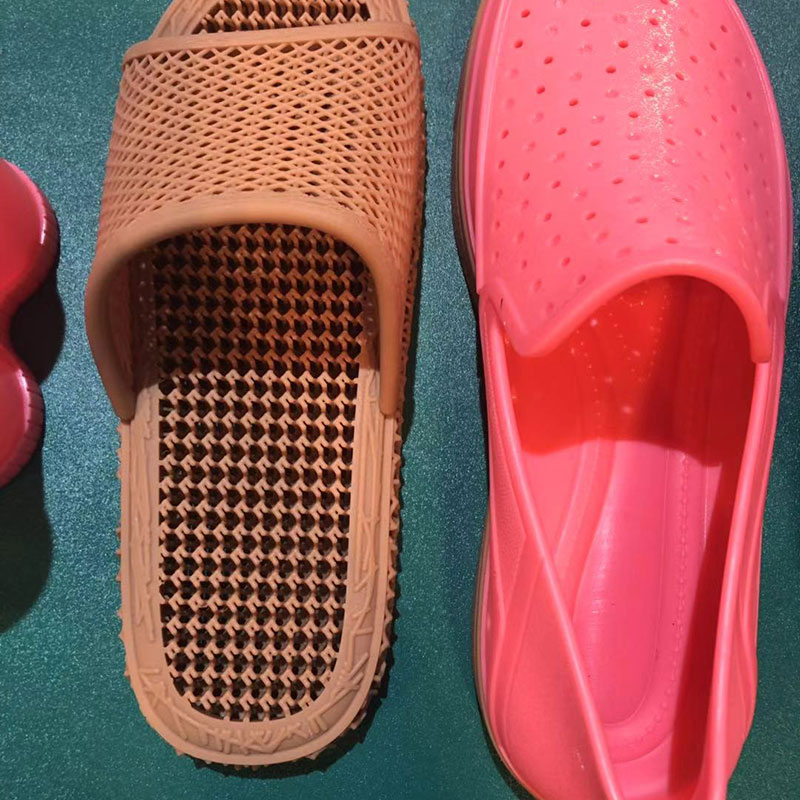

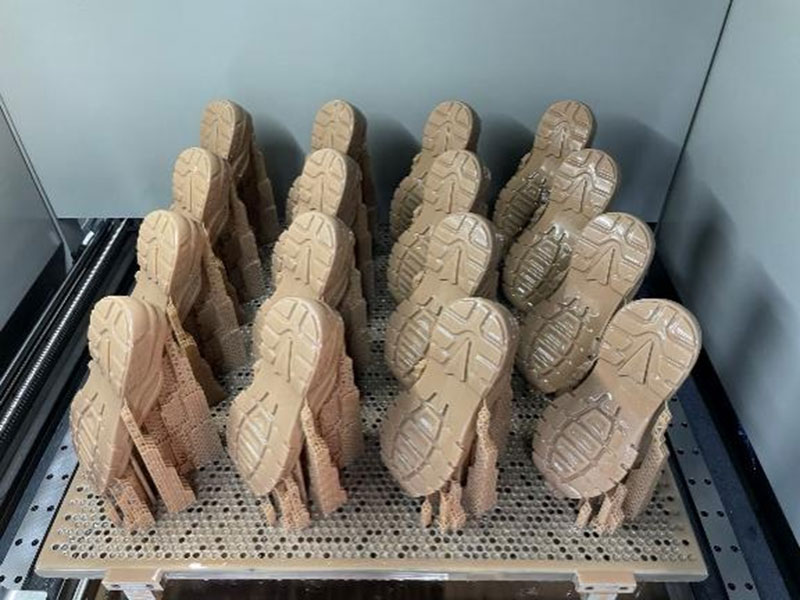

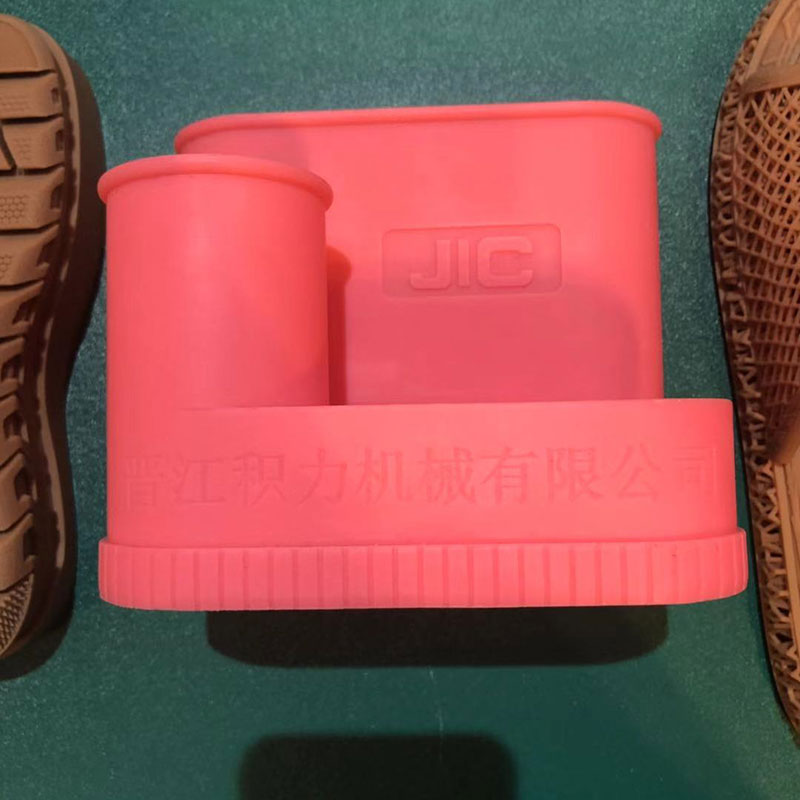

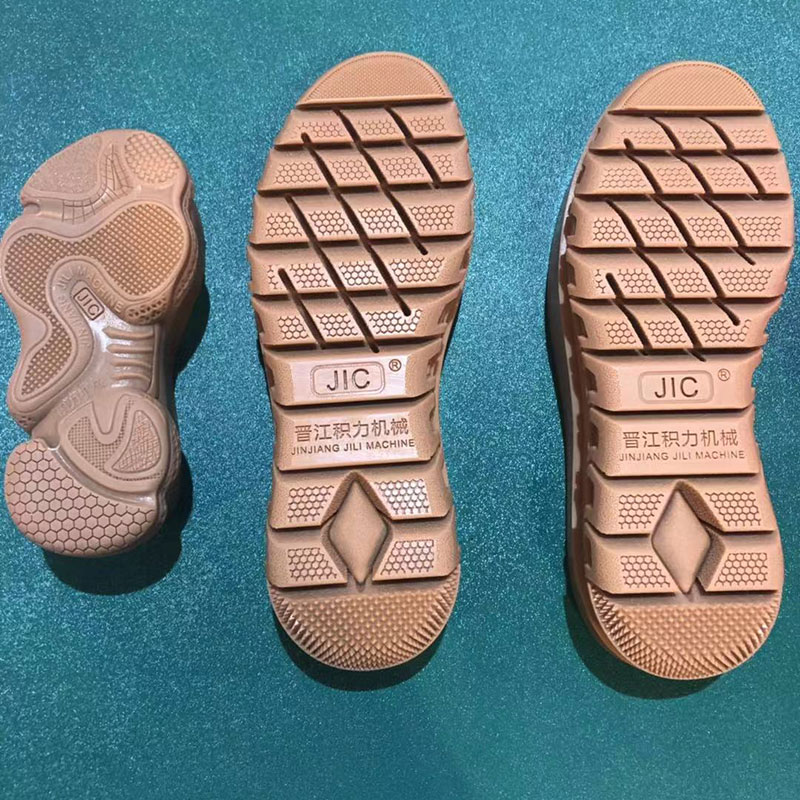

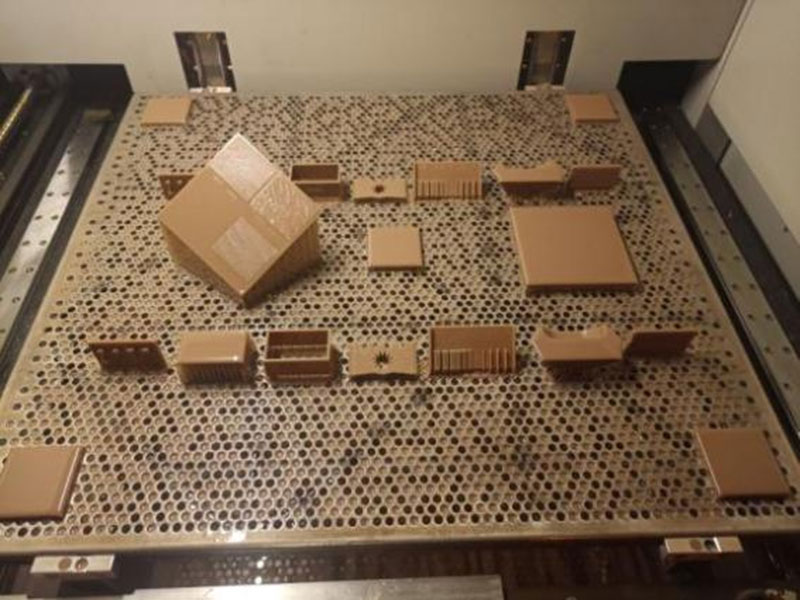

Sample printing, formwork production in quantity, sole texture, and creative design
Technical Specifications
| Item | Unit | Specifications |
| Print volume | mm | 600x550x450 |
| Number of lasers | 1 | |
| Raw material | Photosensitive resin | |
| Minimum layer height | mm | 0.06 |
| Scanning speed | mm/s | 1000-10000 |
| Light spot diameter | mm | 0.1-0.3 |
| Laser power | w | 3 |
| Software | JIC Print pro 3.0 | |
| Dimensions | mm | 1526x1152x2070 |
| Weight | kg | 1500 |
| Rated voltage | v | 220 |
| Rated power | w | 1800 |
Features
- The 3D printer adopts a point laser with interchangeable heads that are long-lasting and reliable;
- Resolution of the compressed spot is 0.06mm, which enables the 3D printer to produce high quality prints with fine details;
- Variable spots with the latest scanning technology deliver a variety of desired effects;
- The 3D printer applies Scanlab’s galvanometer scanner to position the laser beam with high precision;
- The liquid level sensor of Panasonic delivers high accuracy detection and the 3D printer can automatically adjust the liquid level;

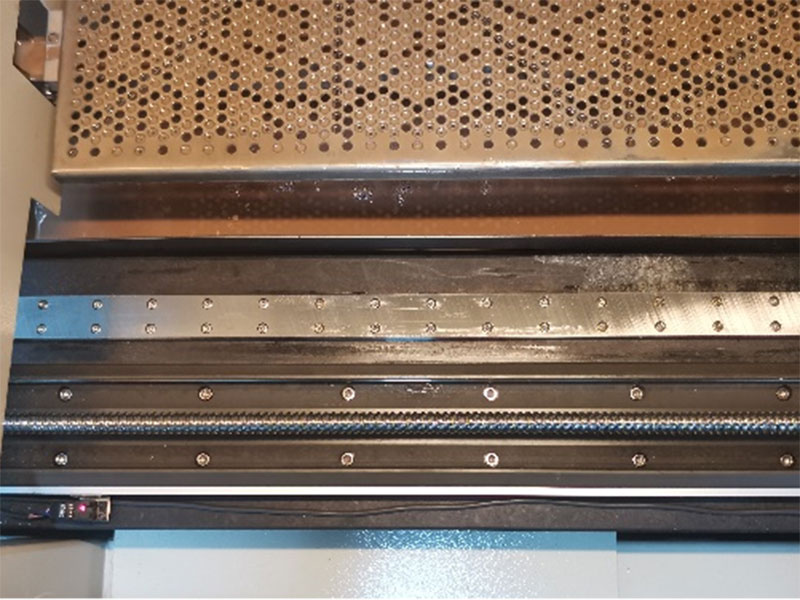

- The moving axle is driven by Yaskawa’s servomotor which delivers high performance;

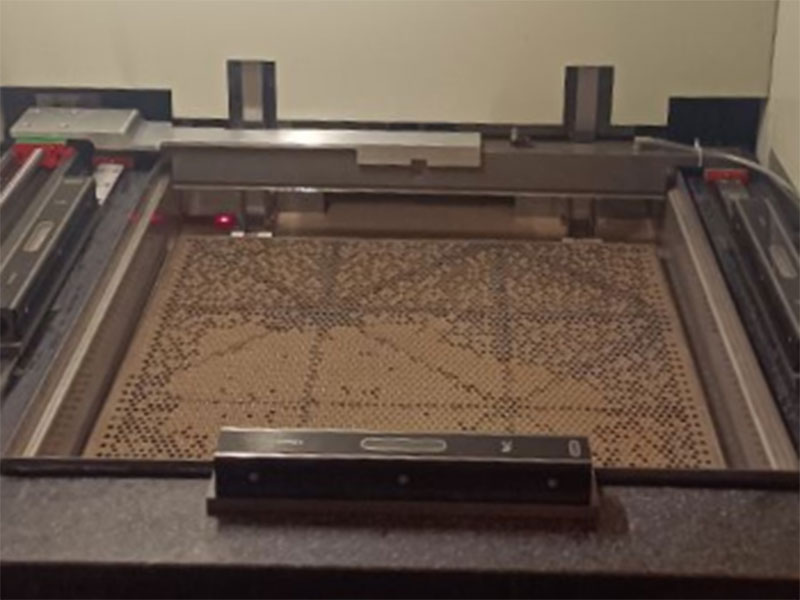

- The marble table provides strong and solid support for operation.
Optional
Ancillary machines are provided to improve the productivity of shoe making machine.
Mixing machine
Thermostatic chamber
Color mixer
Air compressor
Cooling tower
Crusher
Sole edge trimmer
With years of experience in the footwear machinery industry, JIC has established itself as a leading manufacturer for shoe making machines in China. Backed by our team of experienced professionals who have long been engaged in the design and production of footwear manufacturing machinery, we are currently capable of supplying an extensive range of high performance injection molding machines for shoes making, such as rain boot making machine, slipper making machine, casual clog making machine, shoe sole making machine, upper strap making machine, as well as injection molding machine built for making other plastic or rubber items. If you have any questions or concerns about shoe machinery, please contact us today.
