    Automatic Rubber Sole Compression Molding Machine

    Rotary injection molding machine for producing plastic shoe soles

    Automatic Rubber Sole Compression Molding Machine
    • Automatic Rubber Sole Compression Molding Machine
    • Automatic Rubber Sole Compression Molding Machine
    • Automatic Rubber Sole Compression Molding Machine

    Raw material:
    natural rubber, neoprene synthetic rubber, oil-resistant rubber

    Applications:

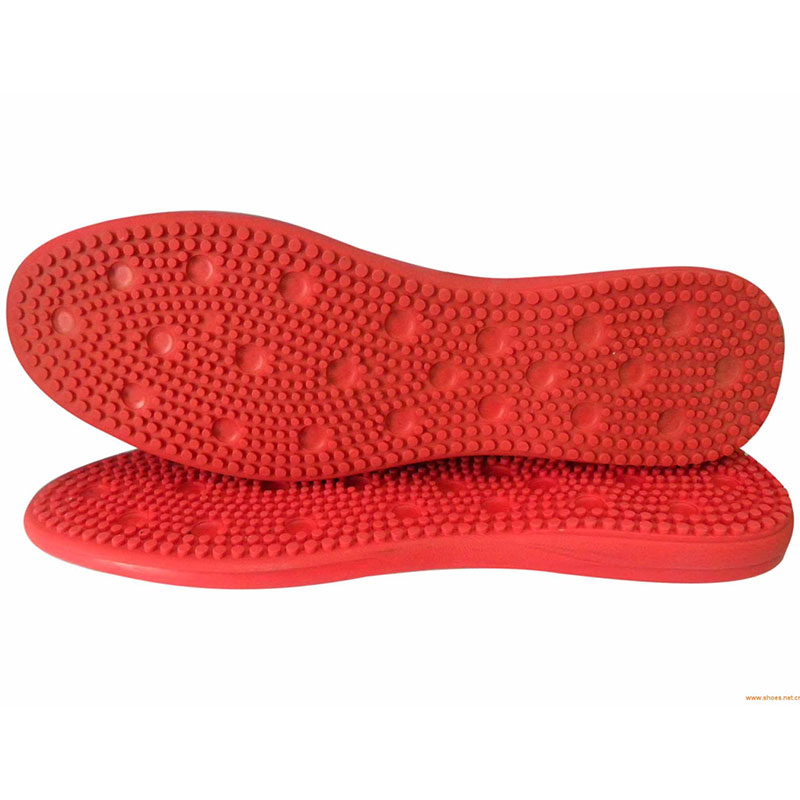

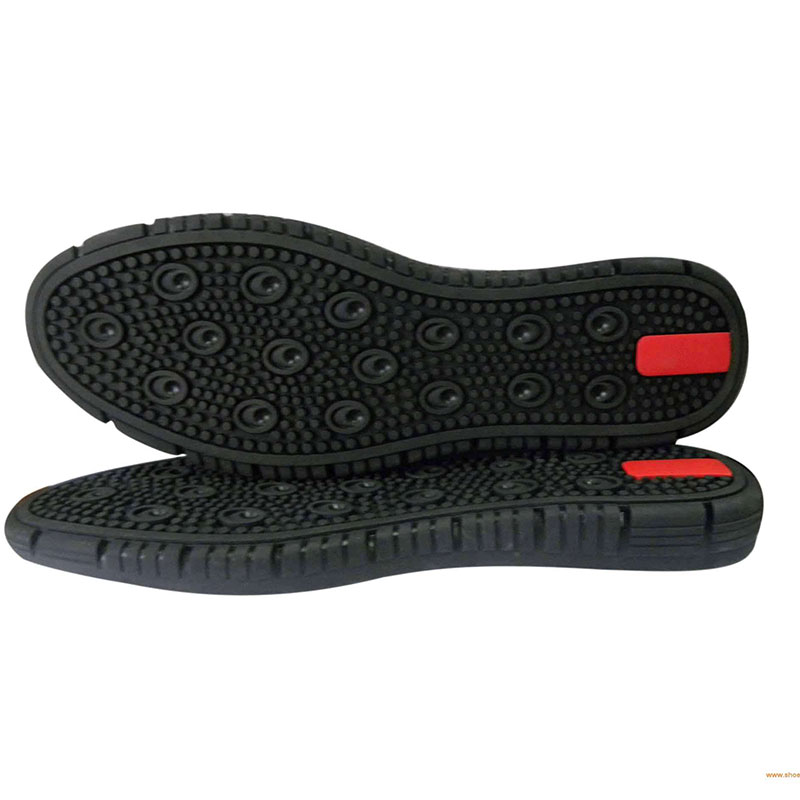

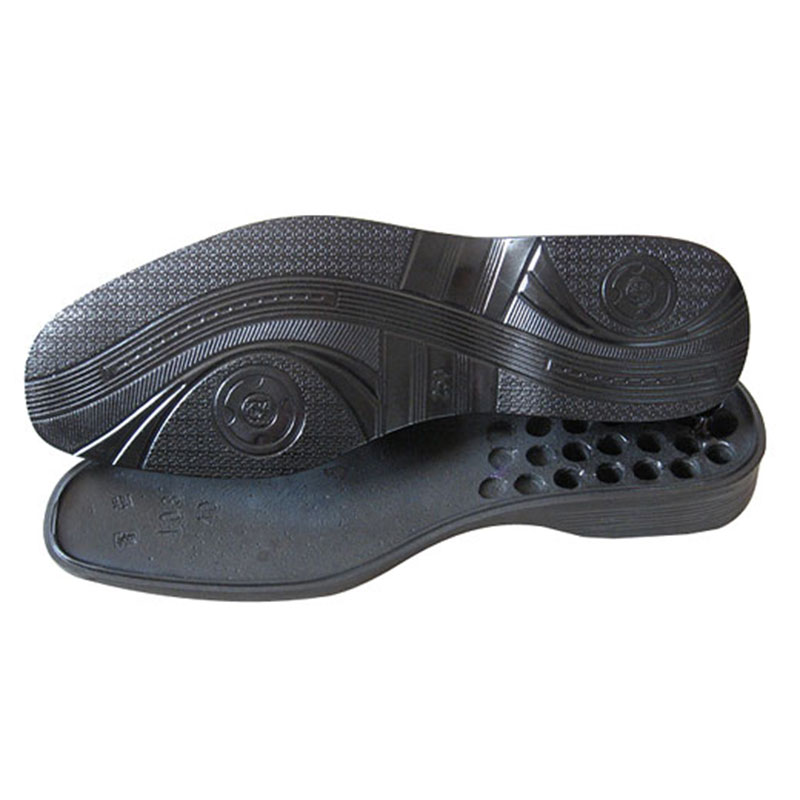

    rubber products for the automatic industry, rubber soles, oil seal rings

    Automatic Rubber Sole Compression Molding Machine

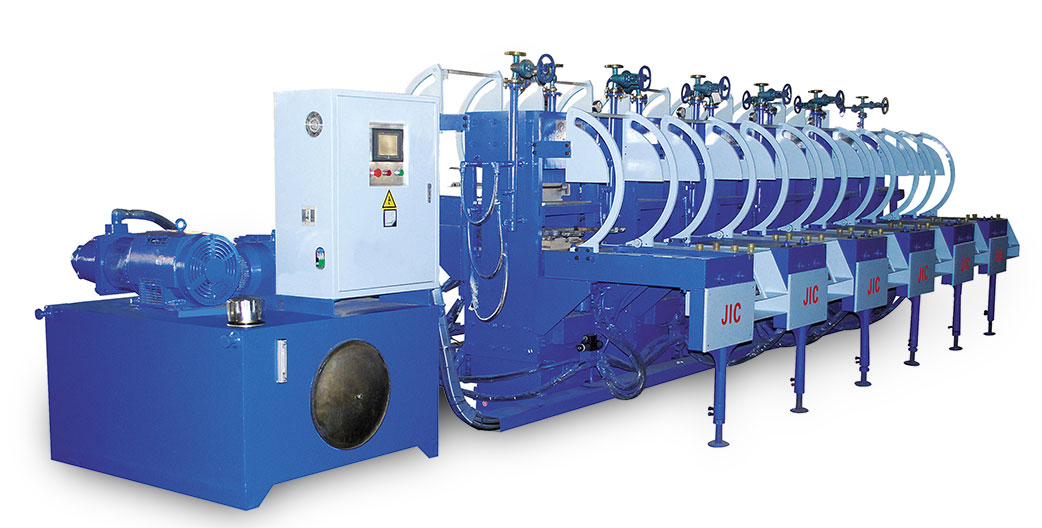

    Multi-station hydraulic rubber molding machine for shoe sole making

    JIC MACHINE provides rubber compression molding machines that are mainly used to produce rubber products, such as, wheels, oil seal rings and shoe soles.

    • The rubber compression molding machine can be operated on both sides to increase efficiency;
    • The sole making machine is highly automatic and it enables automatic mold loading and unloading.
    Request a Quote
    Technical Specifications
    Item Unit Specifications
    Model 1506
    Raw material RB
    Heating method Electric heating, steam, conduction oil
    Number of plates 2
    Plate clearance mm 180
    Clamping force T 150
    Mold size mm 400*450
    Mold height mm 70-150
    Sliding stroke mm 760
    Main motor power kW 15
    Motor power of the slide plate kW 5.5
    Machine dimensions mm 7630*2500*2000
    Gross weight kg 15000
    Features
    • The shoe making machine enables automatic mold loading and unloading;
    • The station enables two-side operation and there is an interlock device on both sides to ensure safety of use;
    • The mold is easy to install as it only needs fixing the bottom part of molds to the slide plate
    • The independent control of each station reduces electricity consumption as the operator can separately run the stations for different production and maintenance needs;
    • The industrial interface along with a PLC system enables easy and convenient operation;
    • The thermal insulation design is particularly used to prevent heat loss, reduce energy consumption and improve the working conditions;
    • The imported hydraulic system adopts the logic circuit design with logic valves to reduce energy consumption and improve working environment;
    • Exhaust time of the vulcanization process can be flexibly adjusted based on the size of molds;
    • One operator is able to handle operation of multiple stations, which reduces labor cost to a large extent.
    Optional

    Ancillary machines are provided to improve the productivity of shoe making machine.
    Contact us for more information and choose the suitable ancillary machines to better support your shoes making business!

    • Mixing machine
    • Thermostatic chamber
    • Color mixer
    • Air compressor
    • Cooling tower
    • Crusher
    • Sole edge trimmer
    Mixing machine
    Request a Quote
    • Mixing machine
    • Mixing machine
    • Mixing machine
    Thermostatic chamber
    Request a Quote
    • Thermostatic chamber
    • Thermostatic chamber
    Color mixer
    Request a Quote
    • Color mixer
    • Color mixer
    • Color mixer
    • Color mixer
    • Color mixer
    Air compressor
    Request a Quote
    • Air compressor
    • Air compressor
    • Air compressor
    • Air compressor
    Cooling tower
    Request a Quote
    • Cooling tower
    • Cooling tower
    • Cooling tower
    • Cooling tower
    • Cooling tower
    Crusher
    Request a Quote
    • Crusher
    • Crusher
    Sole edge trimmer
    Request a Quote
    • Sole edge trimmer
    • Sole edge trimmer
    • Sole edge trimmer
    With years of experience in the footwear machinery industry, JIC has established itself as a leading manufacturer for shoe making machines in China. Backed by our team of experienced professionals who have long been engaged in the design and production of footwear manufacturing machinery, we are currently capable of supplying an extensive range of high performance injection molding machines for shoes making, such as rain boot making machine, slipper making machine, casual clog making machine, shoe sole making machine, upper strap making machine, as well as injection molding machine built for making other plastic or rubber items. If you have any questions or concerns about shoe machinery, please contact us today.
