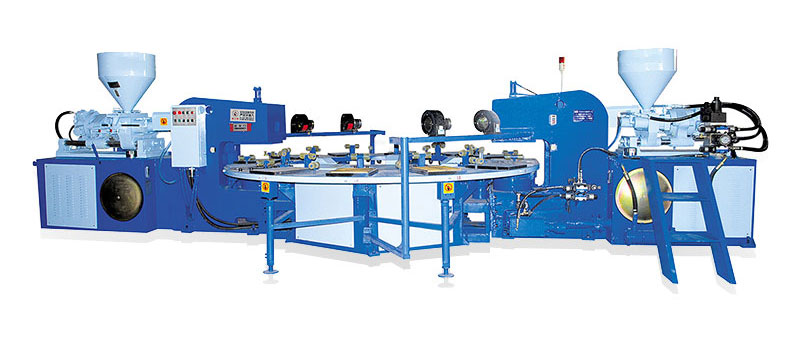

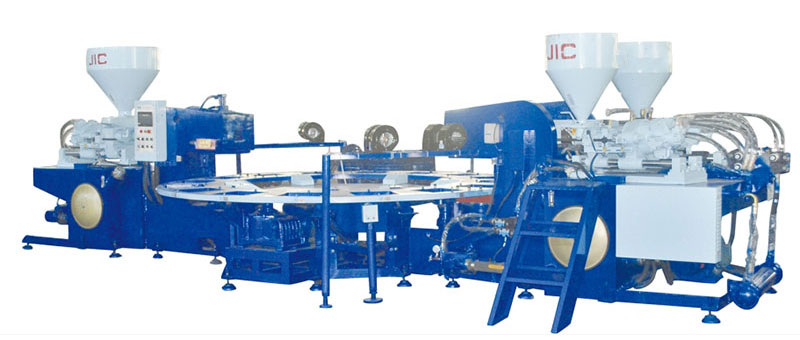

Two Color TPR Sole Injection Molding Machine
Rotary injection molding machine for producing plastic shoe soles
Two Color TPR Sole Injection Molding Machine
Rotary injection molding machine for producing plastic shoe soles
Apart from EVA and PVC footwear machines, JIC MACHINE also provides TPR shoe making machines. Two color TPR sole injection molding machine is the popular products at home and abroad and it is mainly used to produce TPR one-color and two-color soles.
- The TPR injection machine is designed for large-sized molds;
- It’s easy and convenient to operate;
- We provide optional mold cooling units and the servomotor system.
Material: PVC, TPR
Applications:

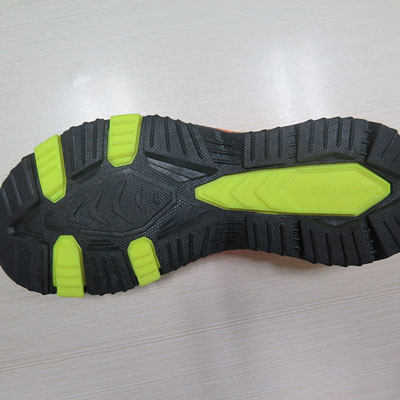

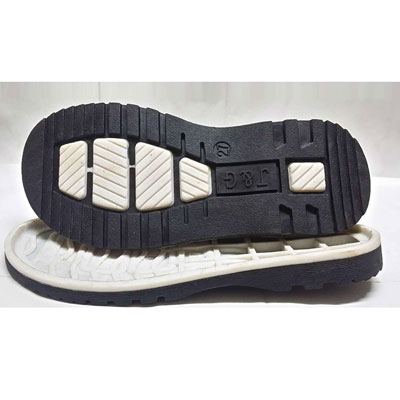

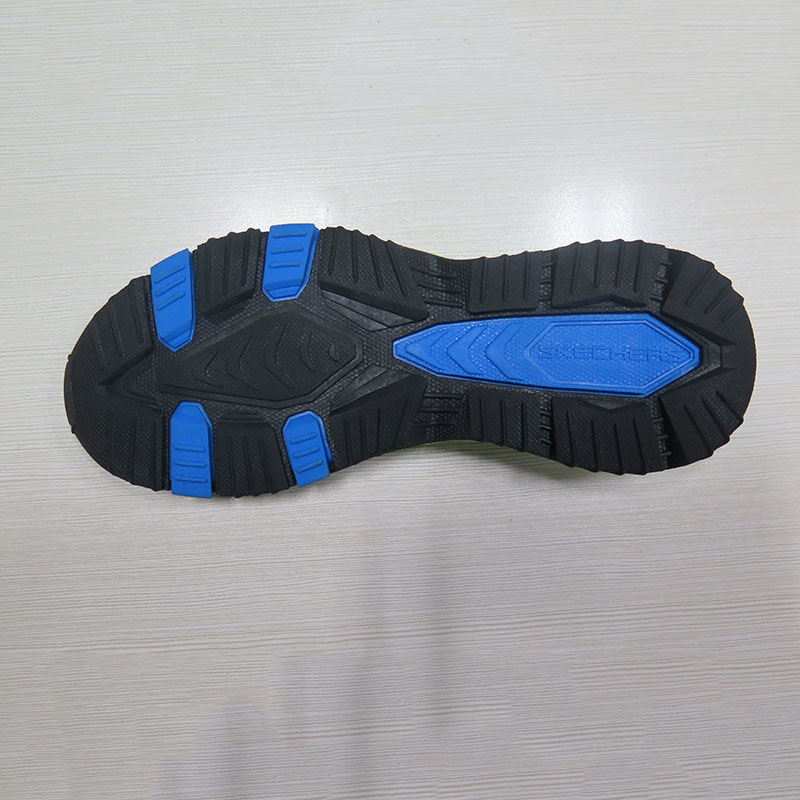

One-color and two-color soles, thin soles and soles of kids shoes
Technical Specifications
| Item | Unit | Specifications | ||
| Model | | | | |
| Raw material | PVC/TPR | PVC/TPR | PVC/TPR | |
| Number of stations | 12 | 16 | 20 | |
| Screw diameter | mm | Ø60,Ø50 | Ø60,Ø50 | Ø60,Ø50 |
| Screw rotational speed | RPM | 0-190 | 0-190 | 0-190 |
| Max. injection volume | cm³/cc | 565,300 | 565,300 | 565,300 |
| Rated injection pressure | kg/cm² | 0-120 | 0-120 | 0-120 |
| Clamping force | T | 60 | 60 | 60 |
| Motor power | kW | 15,11 | 15,11 | 15,11 |
| Power of electric heating | kW | 13,11 | 13,11 | 13,11 |
| Temperature setting | stage | 4 | 4 | 4 |
| Max. mold size | mm | 280*350*150 | 280*350*150 | 280*350*150 |
| Mold height | mm | 60-150 | 60-150 | 60-150 |
| Machine dimensions | mm | 7600*3000*1800 | 7700*3300*1800 | 8000*4000*1800 |
| Gross weight | kg | 9200 | 10000 | 11000 |
Features
- The major highlight of the TPR injection machine is energy-saving since it delivers large volume of output while using less energy;
- The TPR injection machine is used to produce TPR one-color and two-color soles and thin soles of kid shoes, sneakers and slippers;
- The system adopts an industrial interface, a PLC system and a touchscreen;
- The dual-ratio hydraulic control valve precisely controls the injection pressure and the rate of flow;
- Digital measurement ensures stable and reliable production performance;
- The panel function design enables easy and convenient operation;
We also provide three-color sole making machines that produce soles in up to three colors.
Contact us for more information about three-color sole injection molding machines.
Optional
Ancillary machines are provided to improve the productivity of shoe making machine.
Mixing machine
Thermostatic chamber
Color mixer
Air compressor
Cooling tower
Crusher
Sole edge trimmer
With years of experience in the footwear machinery industry, JIC has established itself as a leading manufacturer for shoe making machines in China. Backed by our team of experienced professionals who have long been engaged in the design and production of footwear manufacturing machinery, we are currently capable of supplying an extensive range of high performance injection molding machines for shoes making, such as rain boot making machine, slipper making machine, casual clog making machine, shoe sole making machine, upper strap making machine, as well as injection molding machine built for making other plastic or rubber items. If you have any questions or concerns about shoe machinery, please contact us today.
