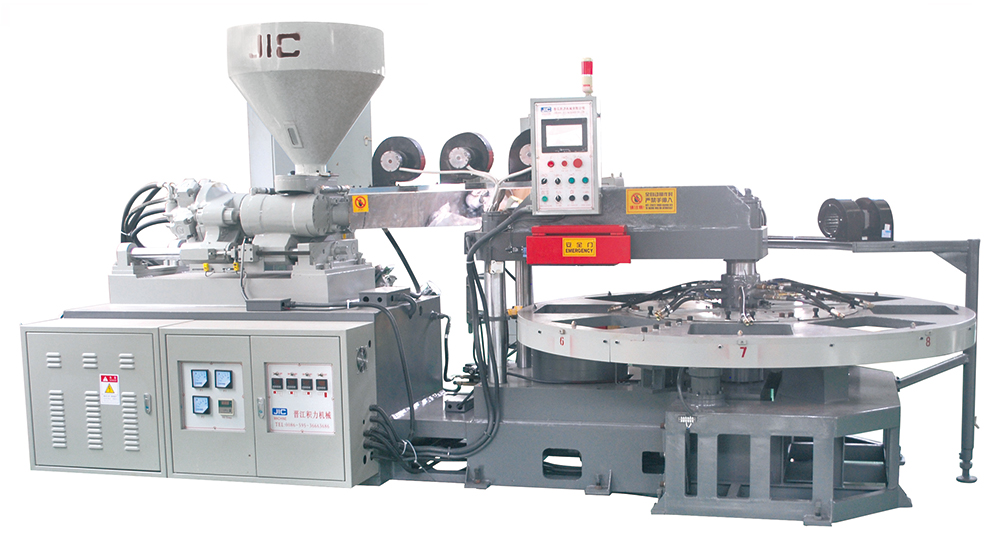

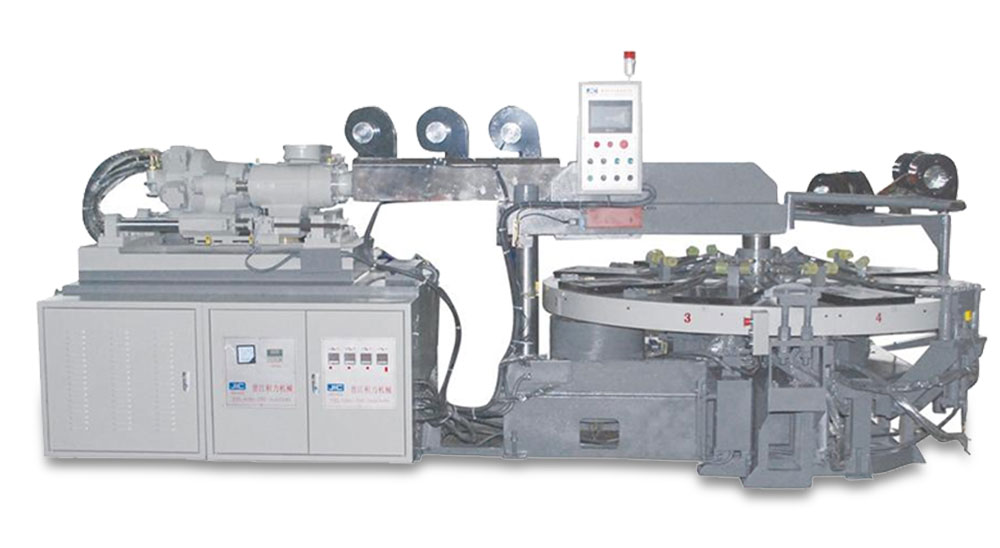

One Color EVA Injection Molding Machine
Rotary injection molding machine for shoe sole making
One Color EVA Injection Molding Machine
Rotary injection molding machine for shoe sole making
- Strong clamping force results in quality EVA products;
- The cooling system consists of water cooling and air cooling units to quick cool down the machine;
- The injection molding machine is mainly applicable to EVA material and it can be used to process TPR products as well.
Material: EVA
Applications

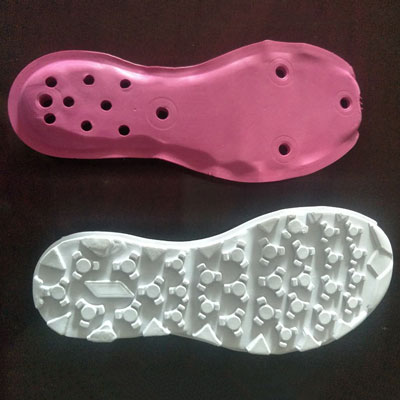

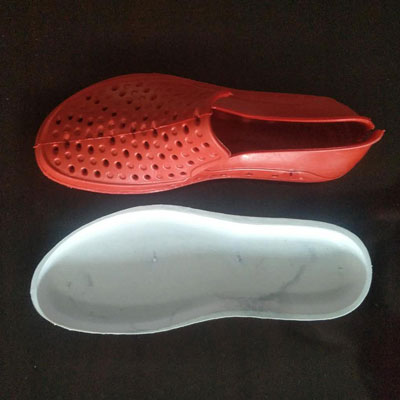

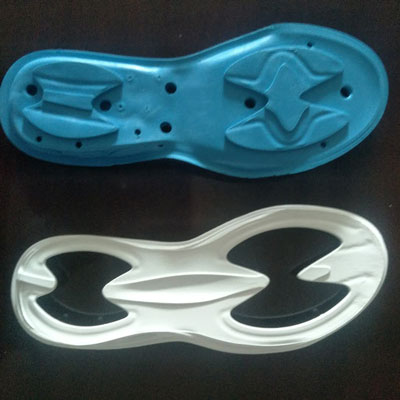

one-color EVA blank products, such as, shoe blanks
Technical Specifications
| Item | Unit | Specifications | |
| Raw material | EVA | EVA | |
| Number of stations | 6 | 8 | |
| Clamping forces | T | 120 | 120 |
| Screw diameter | mm | Ø50 | Ø50 |
| Screw rotational speed | rpm | 0-190 | 0-190 |
| Max. injection volume | cm³/cc | 710 | 710 |
| Rated injection pressure | kg/cm² | 0-120 | 0-120 |
| Rate of motor | kW | 16 | 16 |
| Rate of heating | kW | 6 | 6 |
| Temperature setting | stage | 4 | 4 |
| Max. mold dimensions | mm | 280*350*170 | 280*350*170 |
| Mold height | mm | 50-170 | 50-170 |
| Machine dimensions | mm | 4360*2300*1860 | 4360*2300*1860 |
| Gross weight | kg | 6000 | 6100 |
Features
- The EVA injection molding machine is particularly used to produce one-color EVA blanks;
- The operator-friendly panel design enables easy and convenient operation;
- The control system consists of an industrial interface, a PLC and laser scanning devices to control the precise injection ratio and volume;
- The dual-ratio electrohydraulic control valve enables the independent control of pressure and rate of flow for stable production;
- The mold closing unit is able to quickly close a mold in a stable and two-stage manner;
- There is balanced stress on molds so that molds are long-lasting and products are free from uneven edge problem.
- Equipped with the circulating water cooling system and the independently developed circulating air cooling unit, the injection molding machine quickly cools down the products and improves productivity.
Optional
Ancillary machines are provided to improve the productivity of shoe making machine.
Mixing machine
Thermostatic chamber
Color mixer
Air compressor
Cooling tower
Crusher
Sole edge trimmer
With years of experience in the footwear machinery industry, JIC has established itself as a leading manufacturer for shoe making machines in China. Backed by our team of experienced professionals who have long been engaged in the design and production of footwear manufacturing machinery, we are currently capable of supplying an extensive range of high performance injection molding machines for shoes making, such as rain boot making machine, slipper making machine, casual clog making machine, shoe sole making machine, upper strap making machine, as well as injection molding machine built for making other plastic or rubber items. If you have any questions or concerns about shoe machinery, please contact us today.
