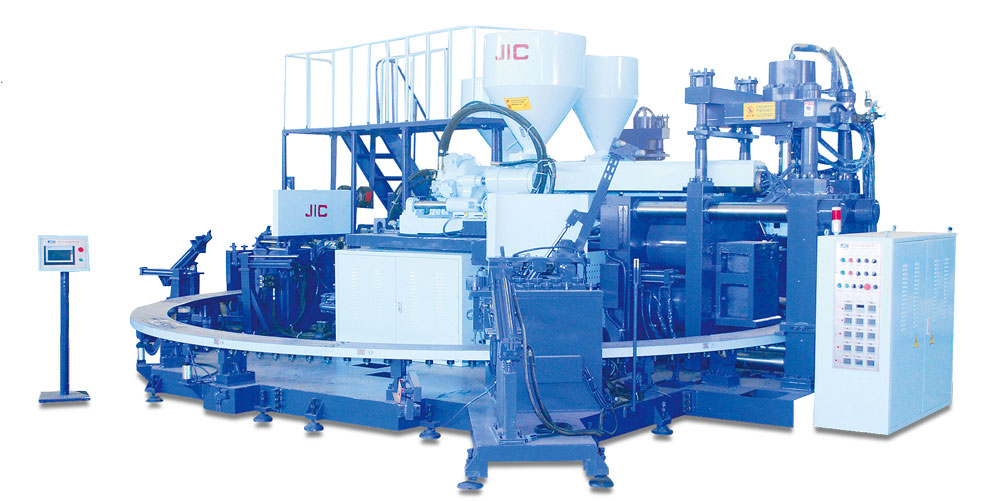

    Three Color PVC Rain Boot Injection Molding Machine

    Rotary injection molding machine for producing plastic rain boots

    Three Color PVC Rain Boot Injection Molding Machine

    Raw material: PVC

    Applications:

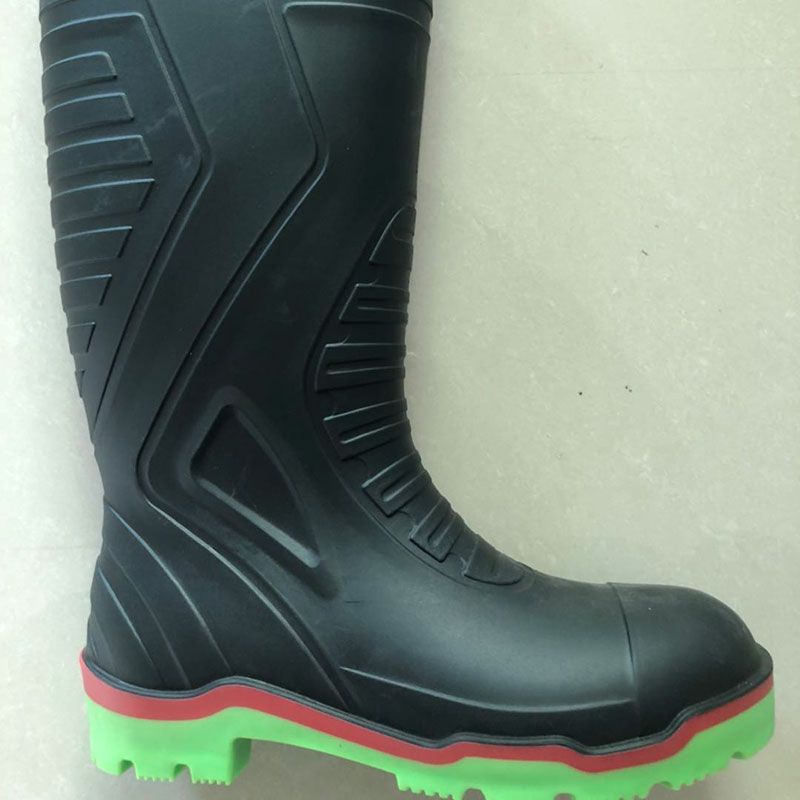

    one-color/two-color/three-color rain boots

    • Three Color PVC Rain Boot Injection Molding Machine
    • Three Color PVC Rain Boot Injection Molding Machine
    • Three Color PVC Rain Boot Injection Molding Machine
    • Three Color PVC Rain Boot Injection Molding Machine
    • Three Color PVC Rain Boot Injection Molding Machine

    Three Color PVC Rain Boot Injection Molding Machine

    Rotary injection molding machine for producing plastic rain boots

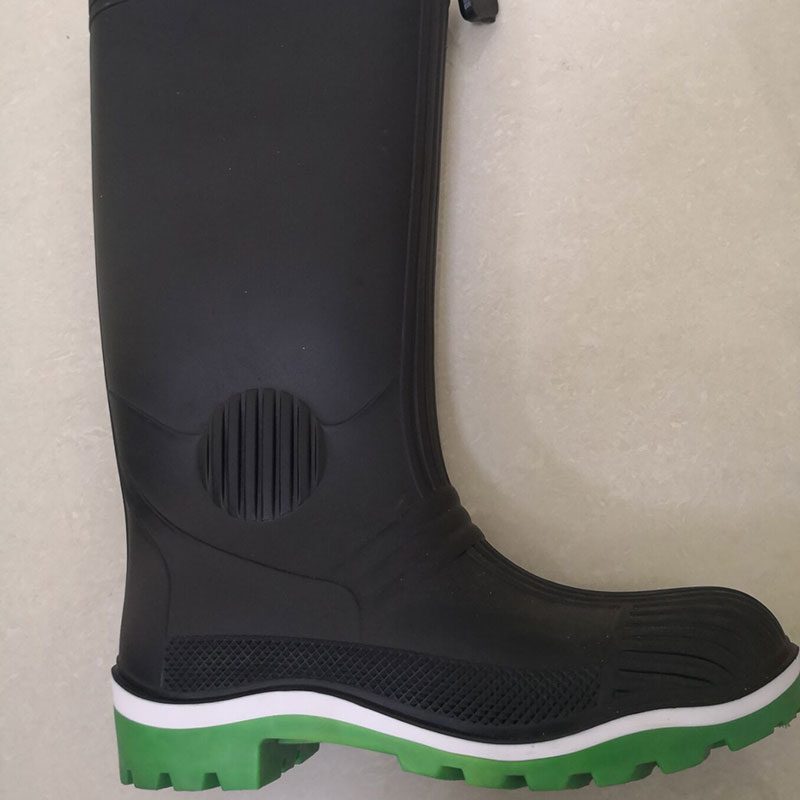

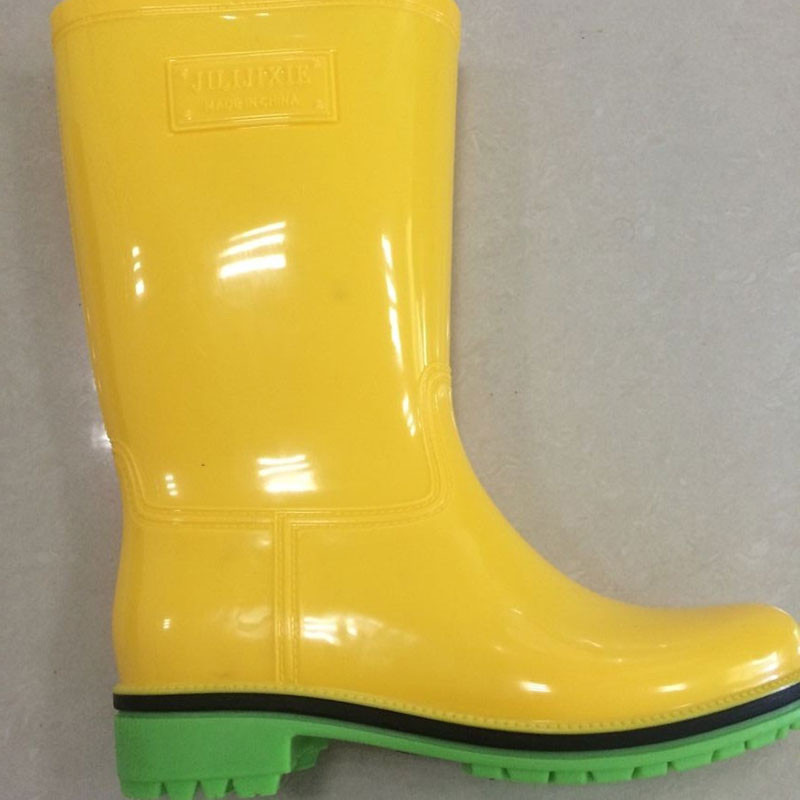

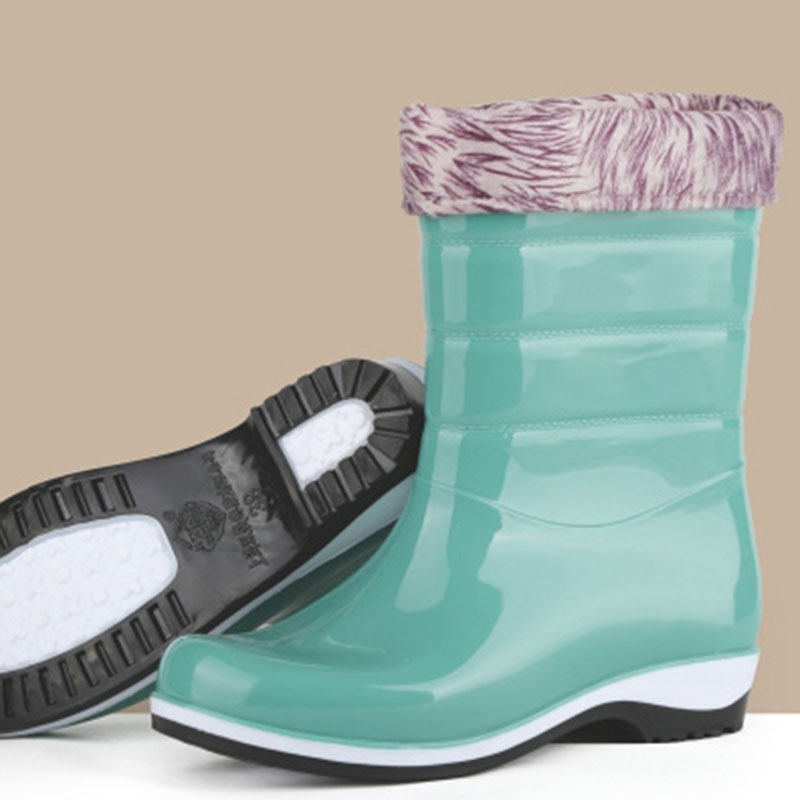

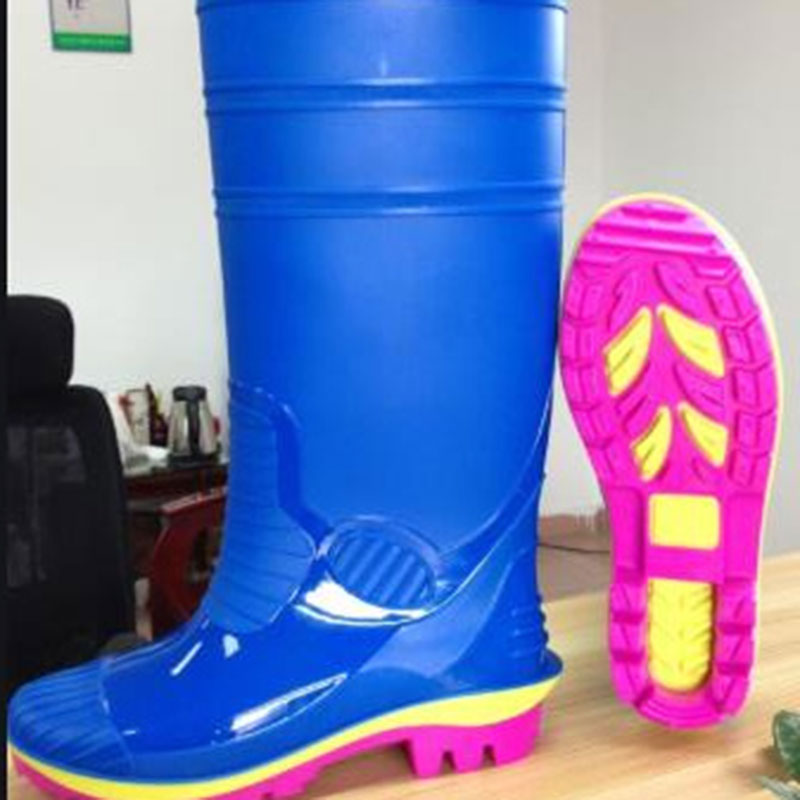

    • The PVC injection molding machine is used to produce rain boots in one, two and three colors
    • The clamping force is balanced to ensure high shoe quality;
    • It is easy and convenient to install and detach molds;
    • The rain boot making machine is equipped with 4 sets of servomotors which deliver the same performance while using less energy than other types of motors.
    Request a Quote
    Technical Specifications
    Item Unit Specifications
    Model 6316N1 6316B1
    Raw material PVC PVC
    Station 12, 14 or 16 12, 14 or 16
    Max. injection volume cm³/cc 1270/770/565 660/565/300
    Rated injection pressure kg/cm² 0-150,0-120,0-120 0-120
    Power of electric heating kW 15/13/11 13/13/11
    Temperature setting stage 5 5
    Screw rotational speed RPM 0-150 0-150
    Screw diameter mm Ø90,Ø70,Ø60 Ø65,Ø65,Ø50
    Motor power kW 22,18.5,15 15,15,11
    Clamping force T 250/300 180/120
    Max. mold size mm 715*420*200 520*390*200
    Machine dimensions mm 7220*6350*2560 6750*6000*2340
    Gross weight kg 22000 18000
    Features
    • The three-color rain boots making machine is widely used to produce one, two and three-color rain boots;
    • The injection molding machine is equipped with an industrial interface, a PLC and a touch screen;
    • The hydraulic system with a dual-ratio control valve better controls the rain boot quality since it can be used to adjust hydraulic pressure and rate of flow;
    • Digital measurement ensures stable production;
    • The control panel function design is clear and easy to understand;
    • The rain boot injection molding machine is equipped with a robotic arm to realize fully automatic operation;
    • The use of the servomotor system significantly saves up to 40% of energy compared to traditional motors.
    Optional

    Ancillary machines are provided to improve the productivity of shoe making machine.
    Contact us for more information and choose the suitable ancillary machines to better support your shoes making business!

    • Mixing machine
    • Thermostatic chamber
    • Color mixer
    • Air compressor
    • Cooling tower
    • Crusher
    • Sole edge trimmer

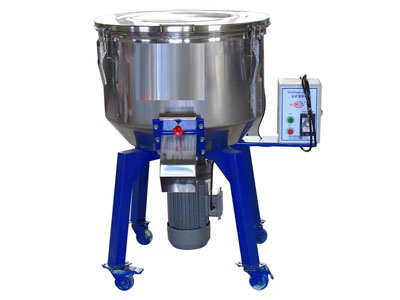

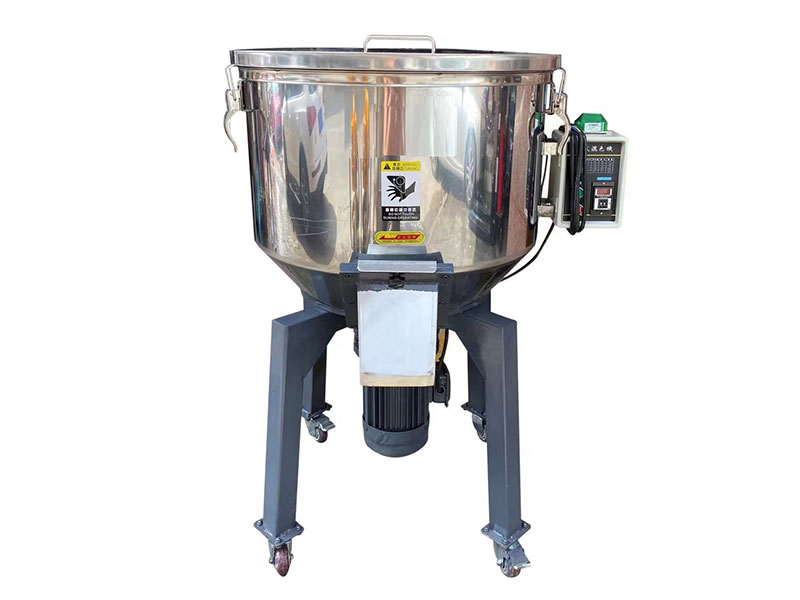

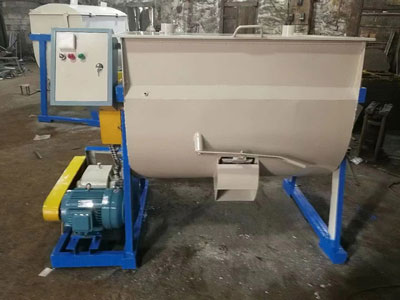

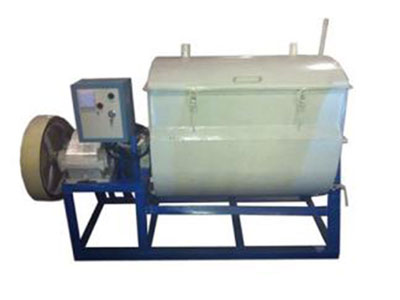

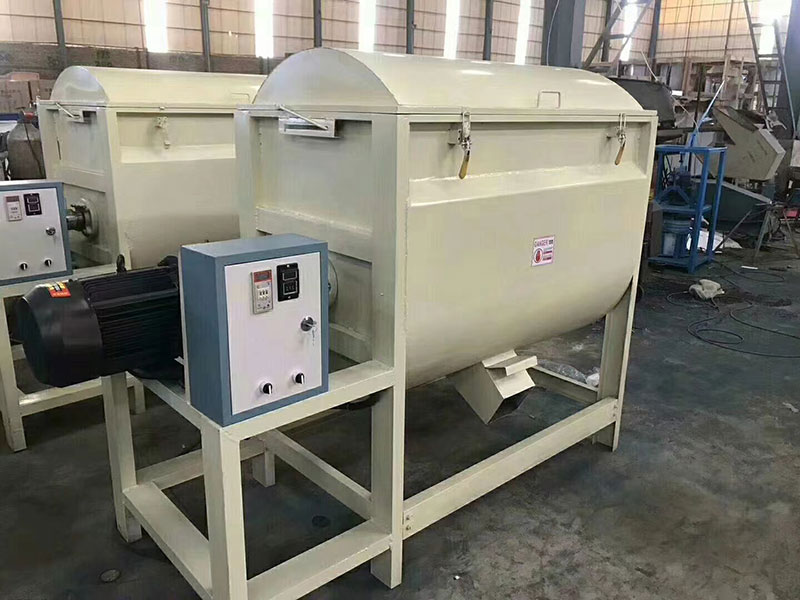

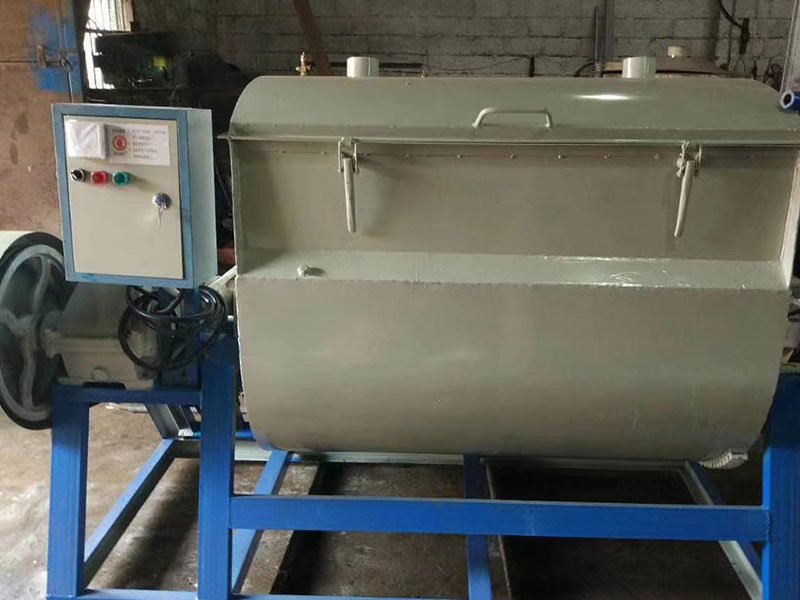

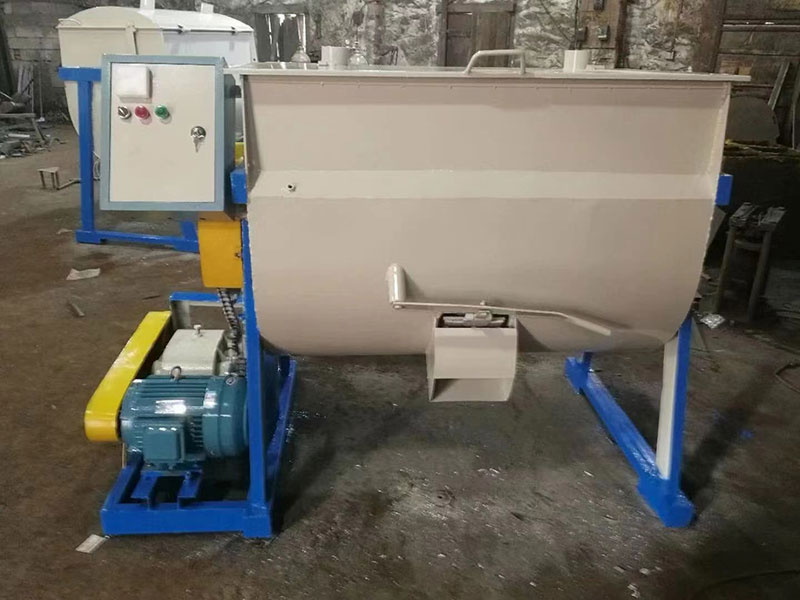

    Mixing machine
    Request a Quote
    • Mixing machine
    • Mixing machine
    • Mixing machine

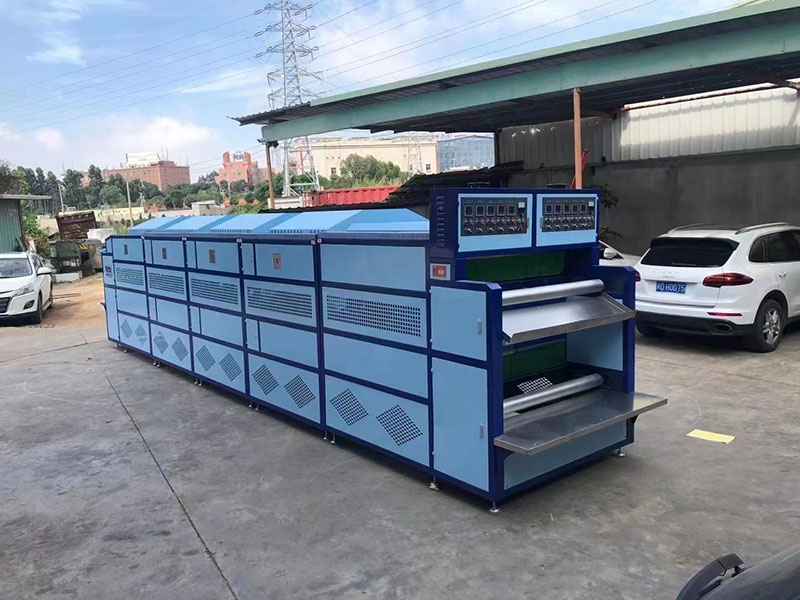

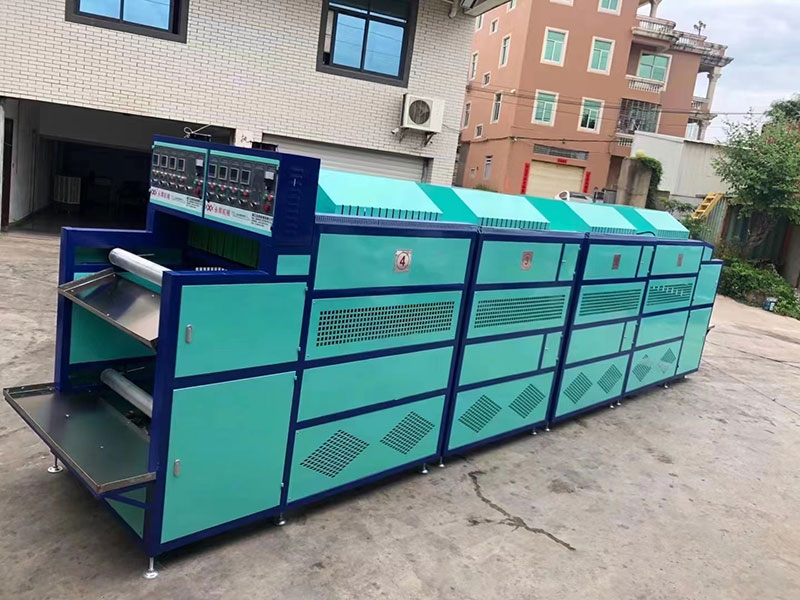

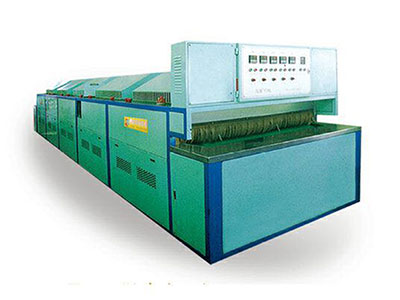

    Thermostatic chamber
    Request a Quote
    • Thermostatic chamber
    • Thermostatic chamber

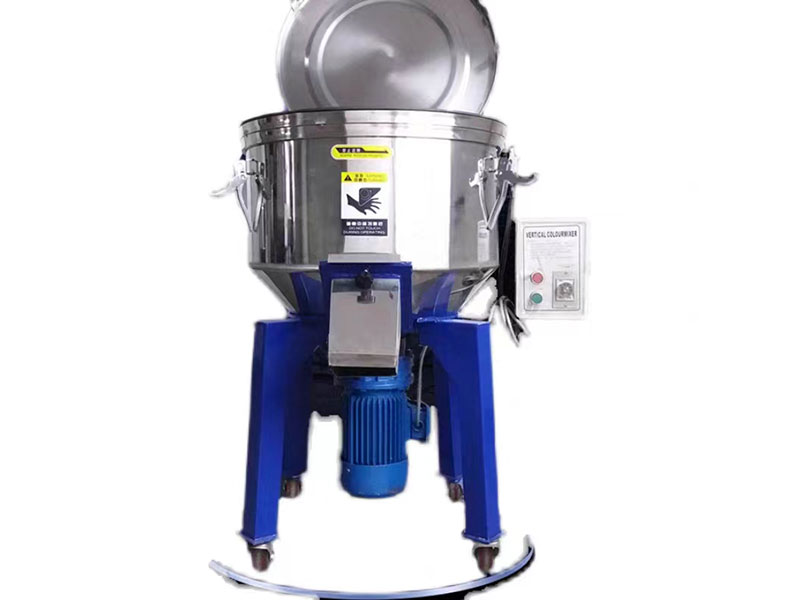

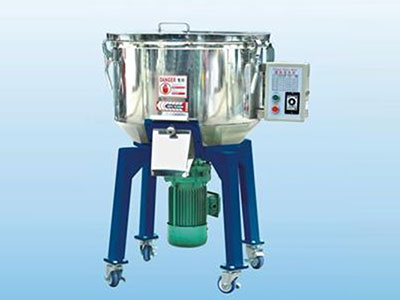

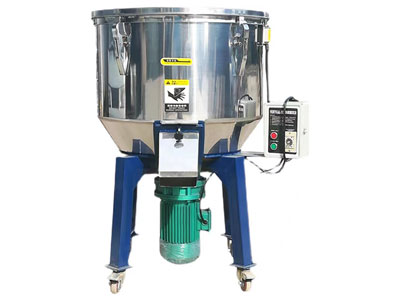

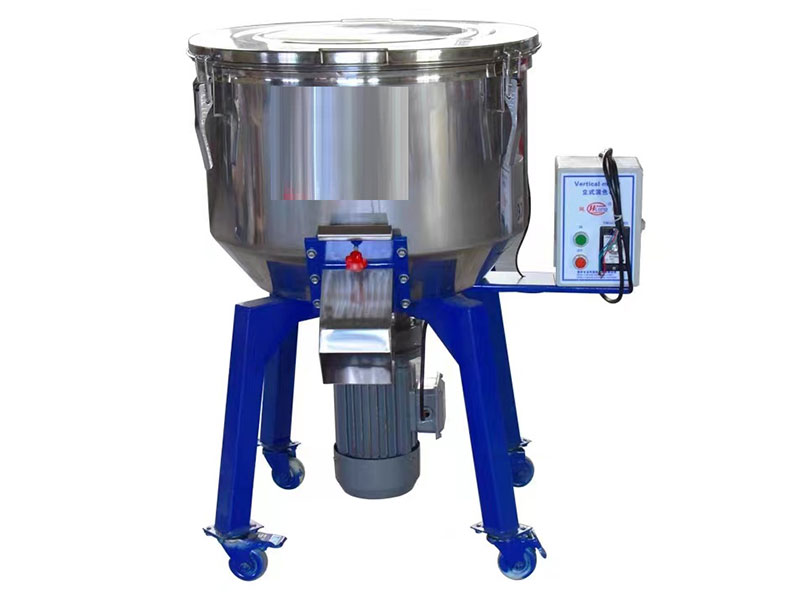

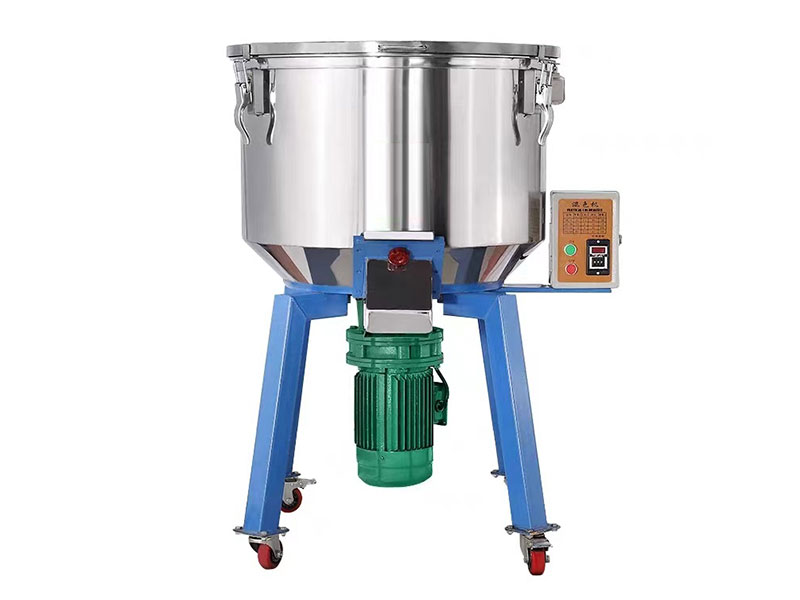

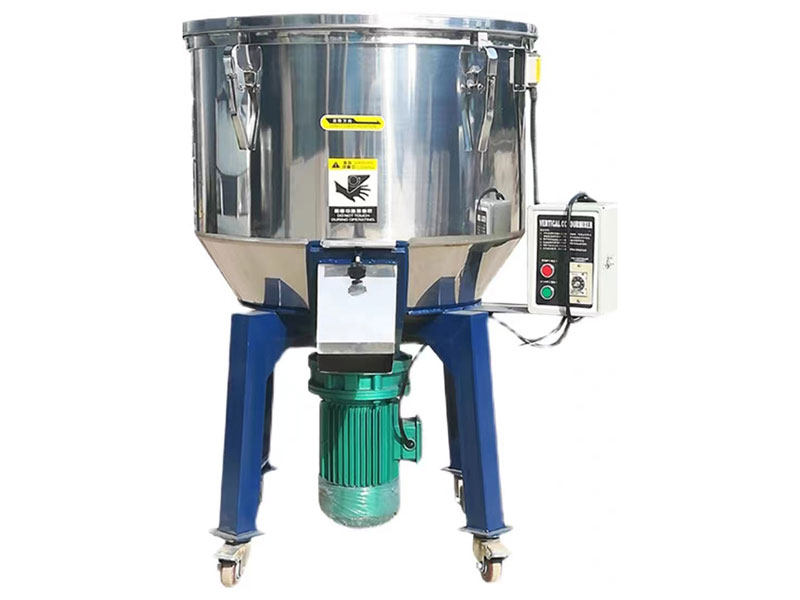

    Color mixer
    Request a Quote
    • Color mixer
    • Color mixer
    • Color mixer
    • Color mixer
    • Color mixer

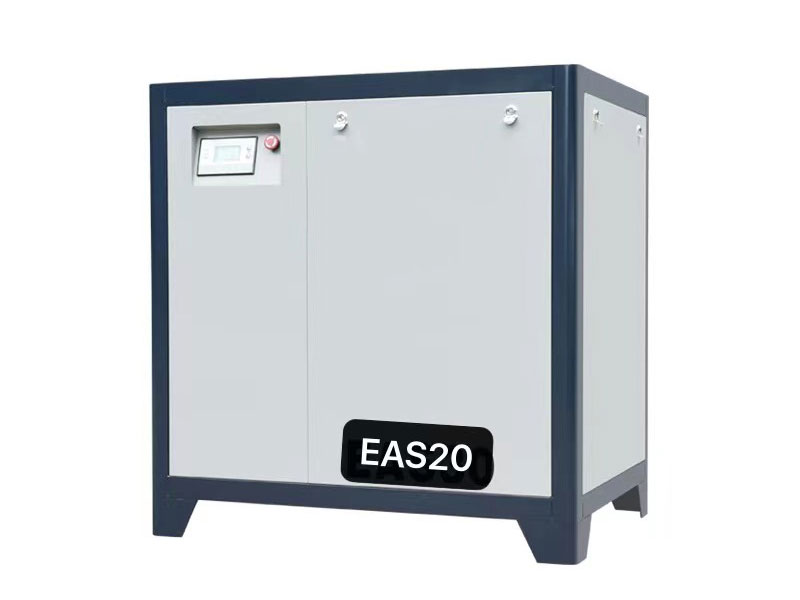

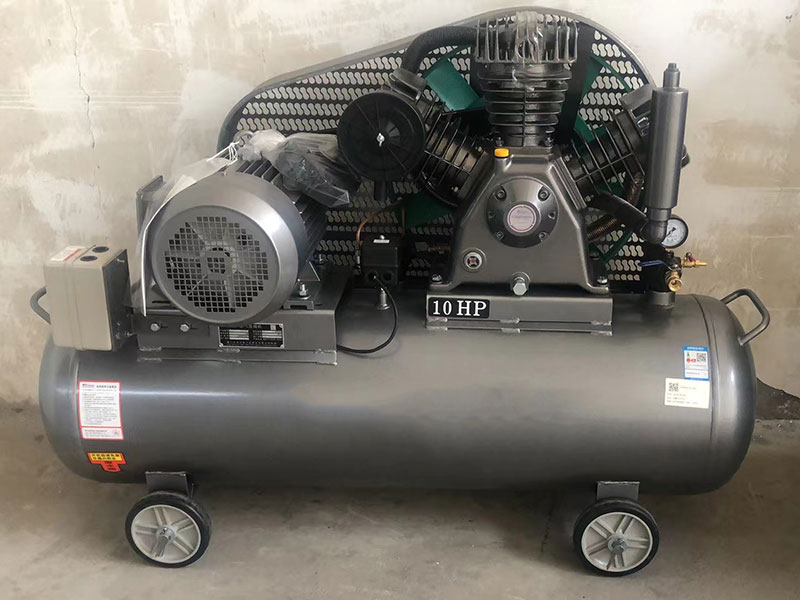

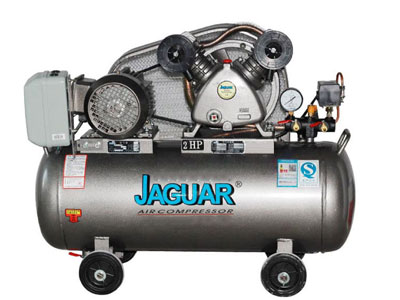

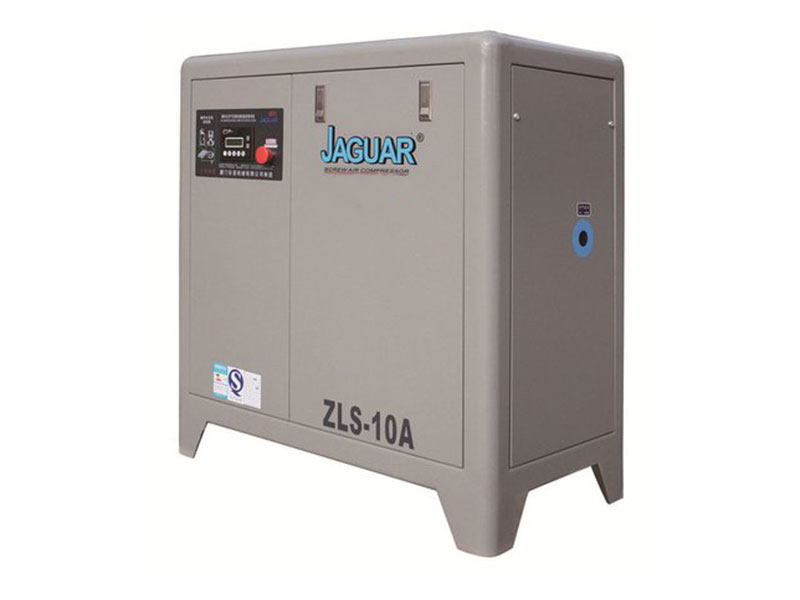

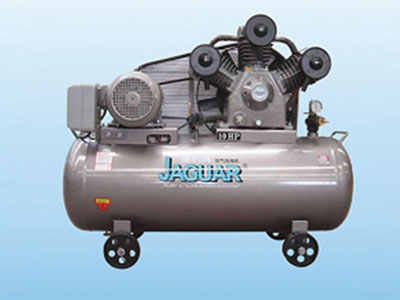

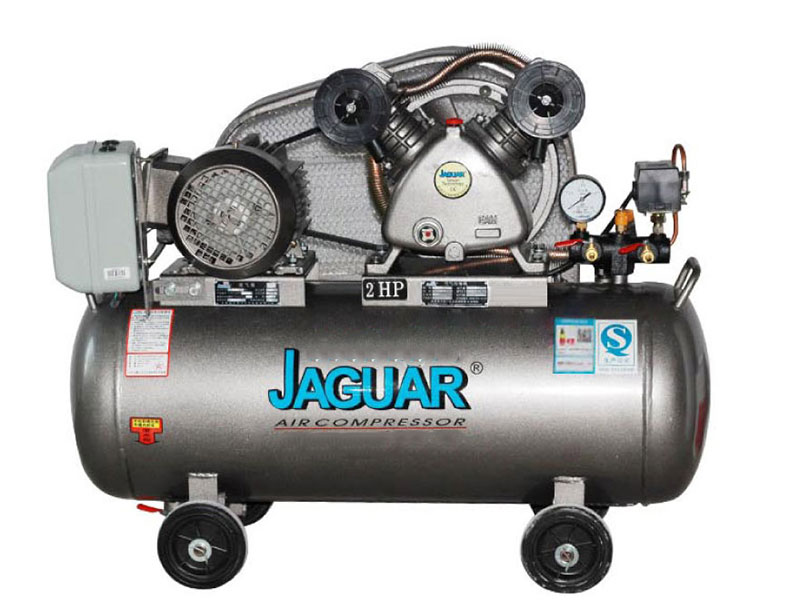

    Air compressor
    Request a Quote
    • Air compressor
    • Air compressor
    • Air compressor
    • Air compressor

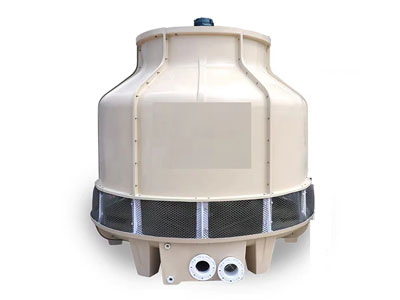

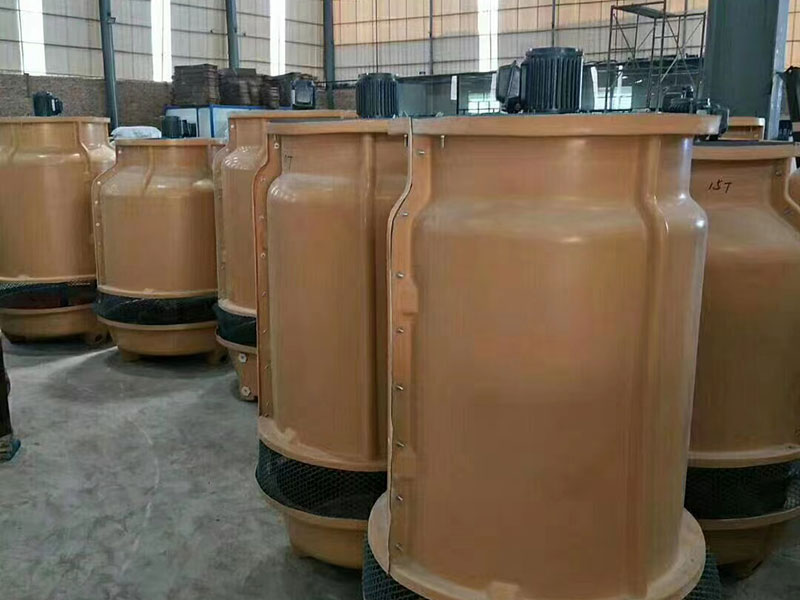

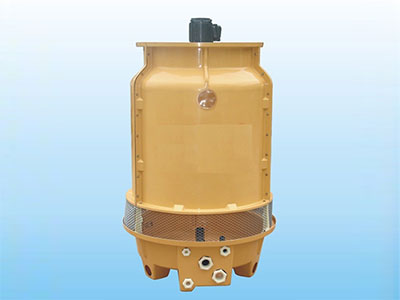

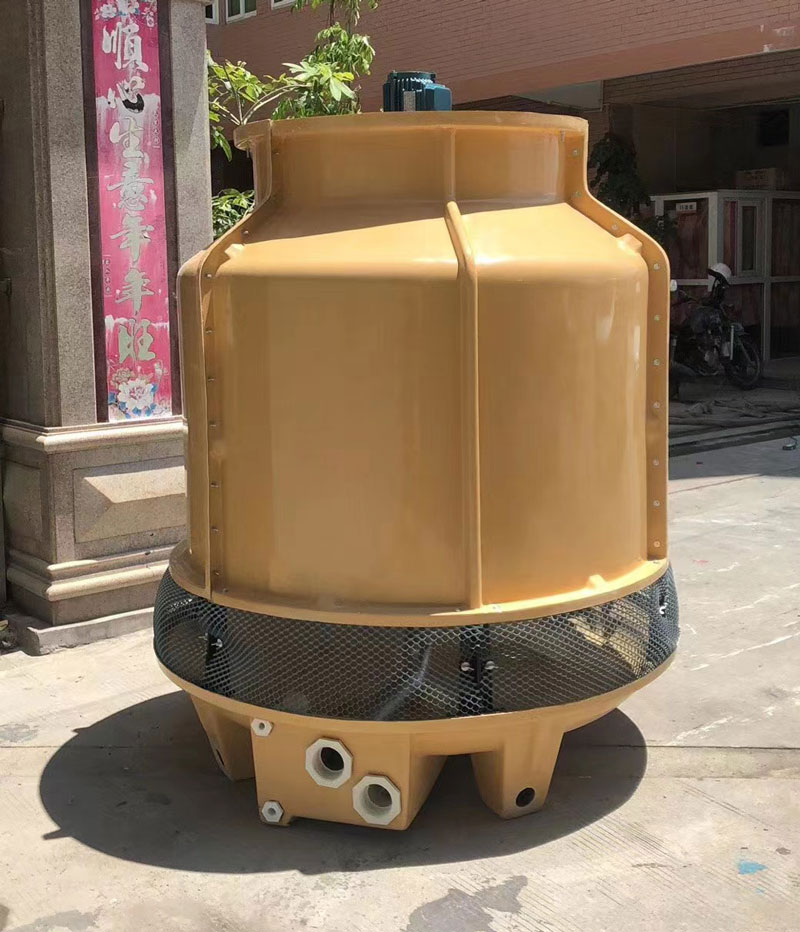

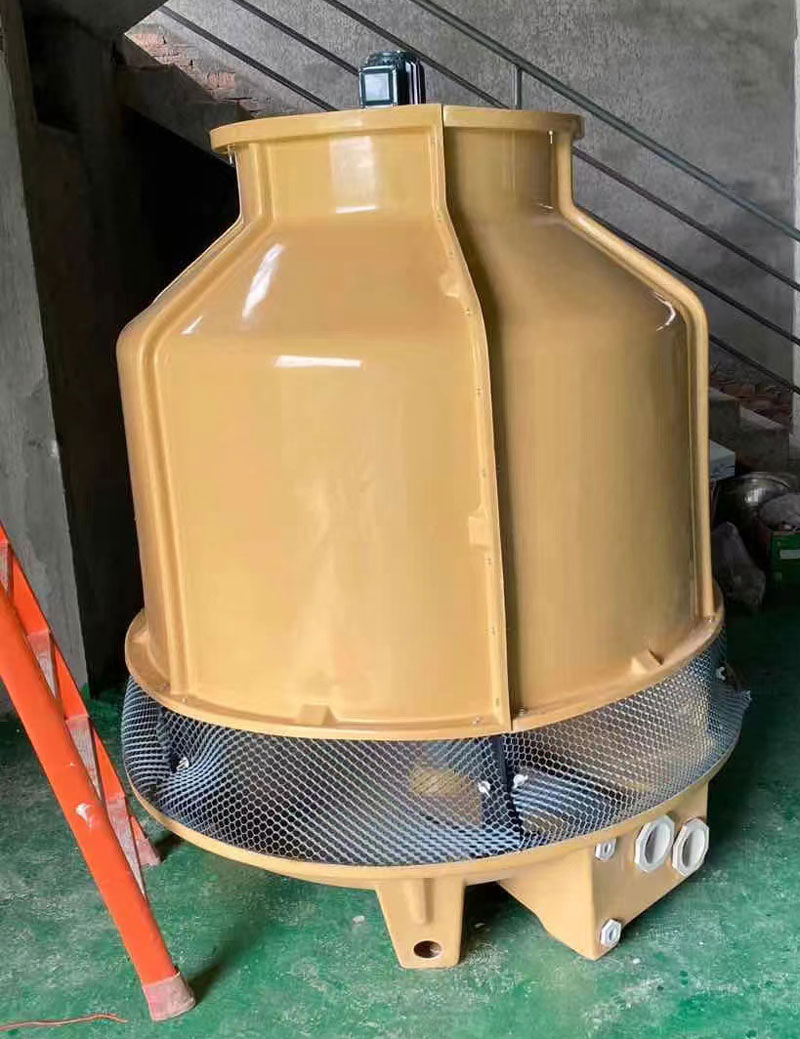

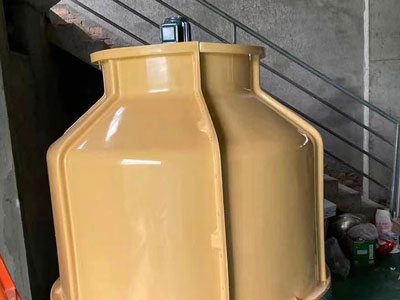

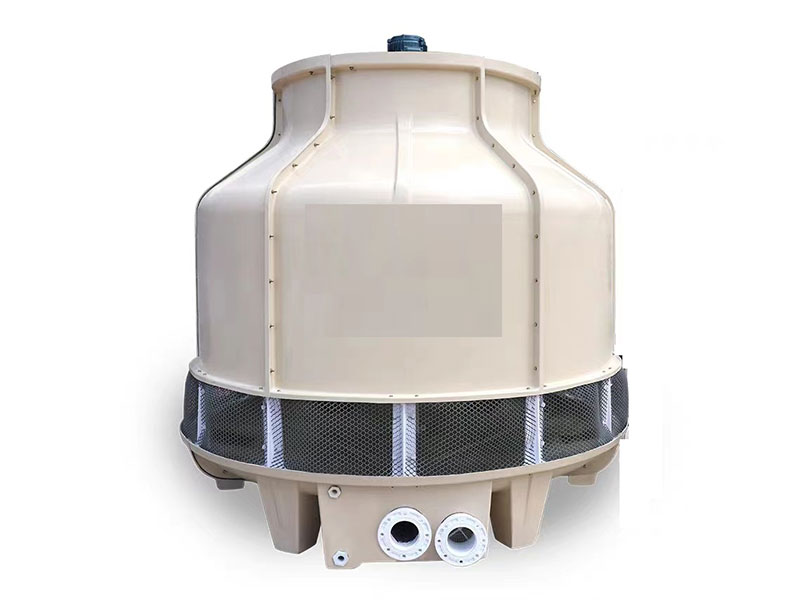

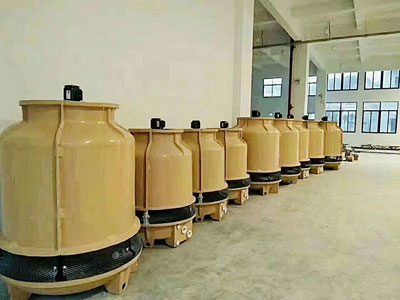

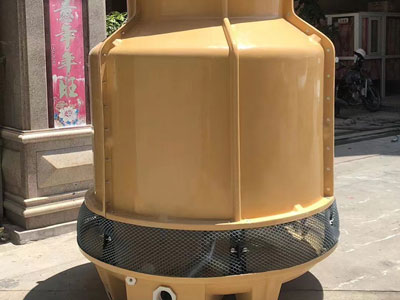

    Cooling tower
    Request a Quote
    • Cooling tower
    • Cooling tower
    • Cooling tower
    • Cooling tower
    • Cooling tower

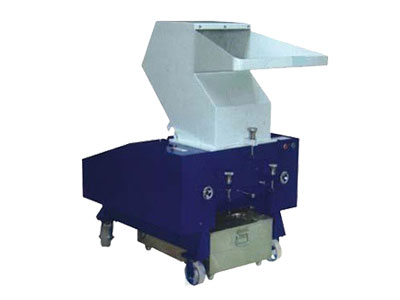

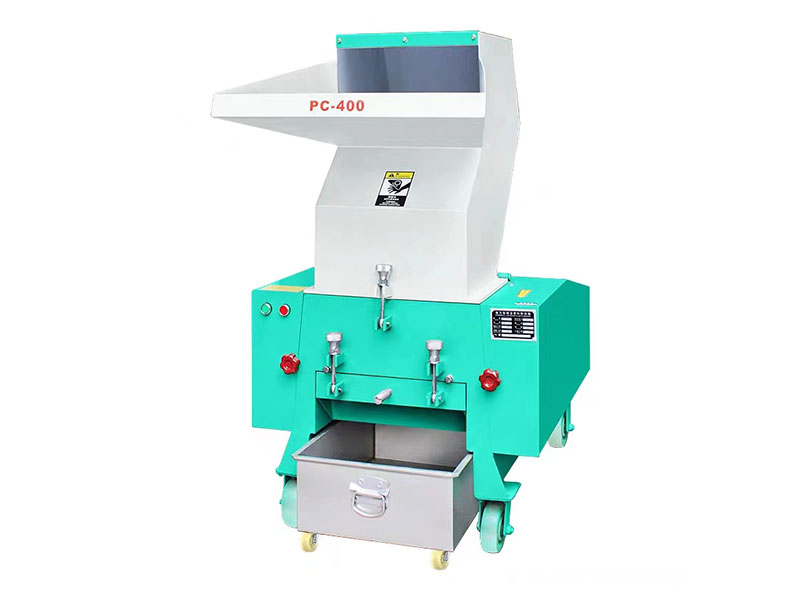

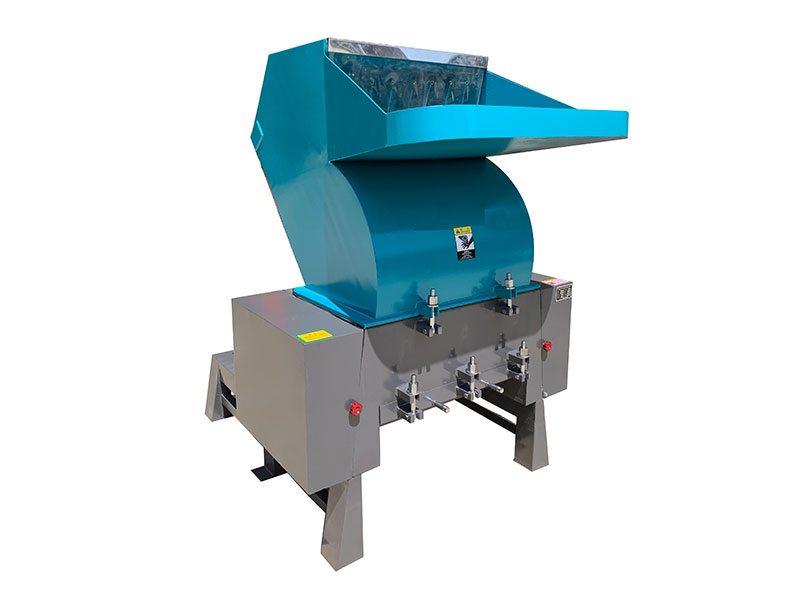

    Crusher
    Request a Quote
    • Crusher
    • Crusher

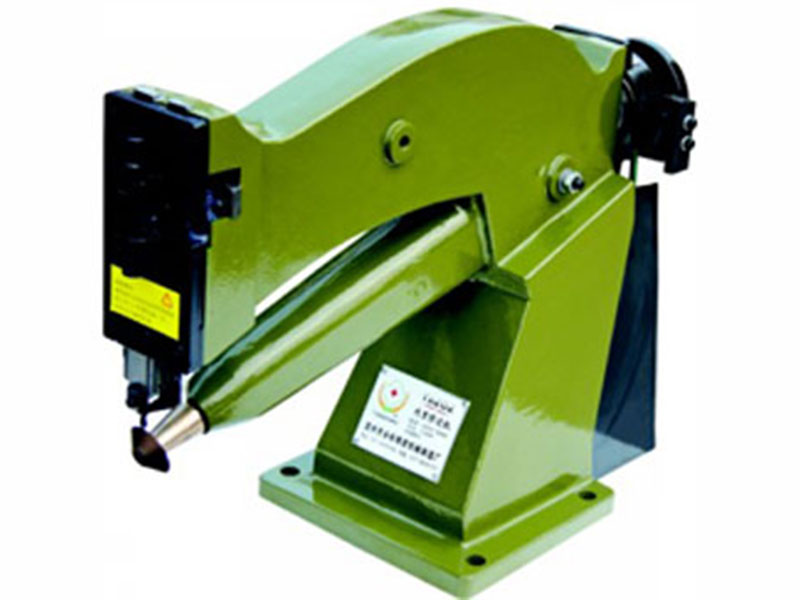

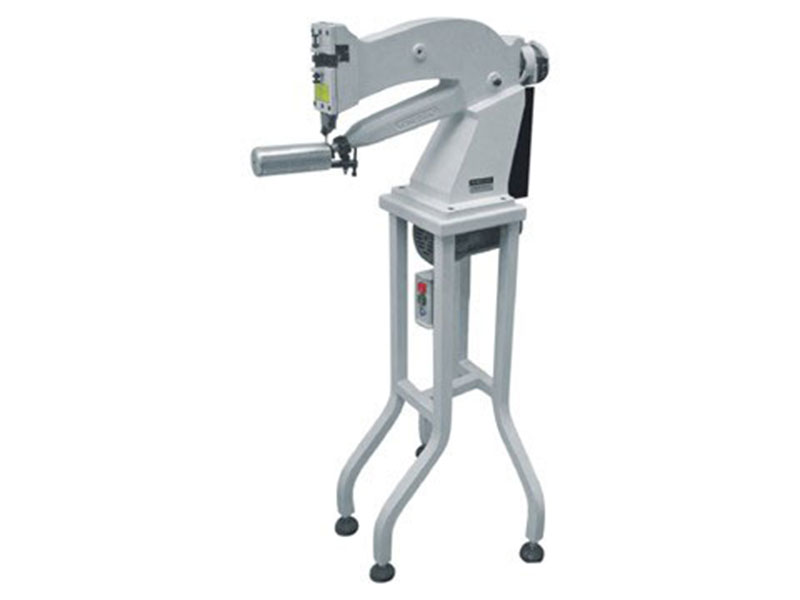

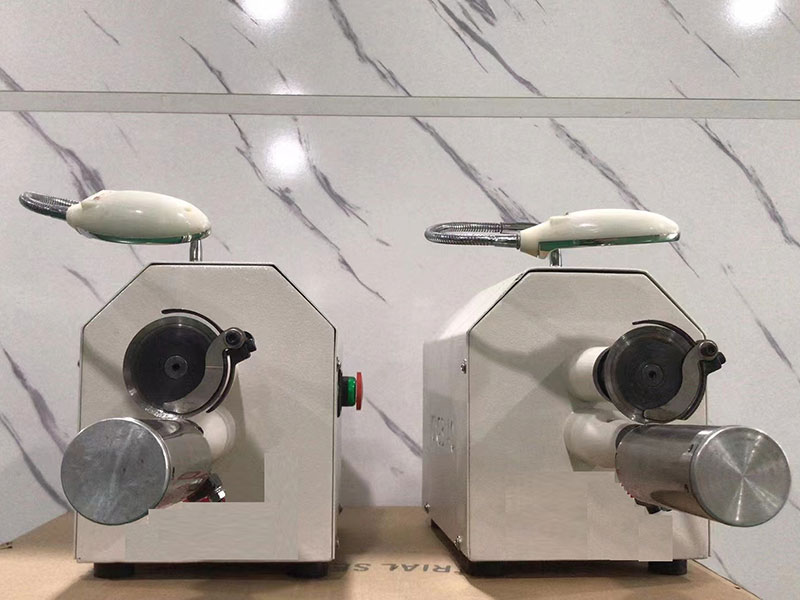

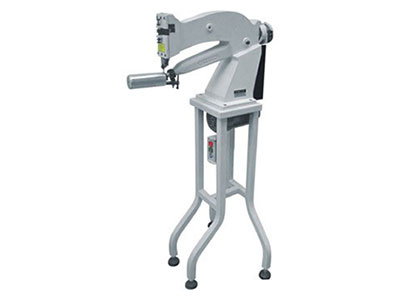

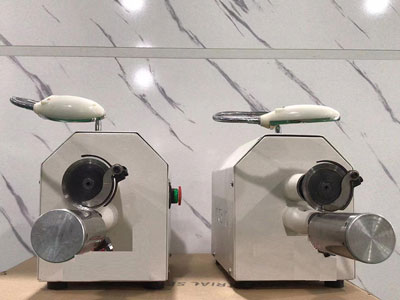

    Sole edge trimmer
    Request a Quote
    • Sole edge trimmer
    • Sole edge trimmer
    • Sole edge trimmer
    With years of experience in the footwear machinery industry, JIC has established itself as a leading manufacturer for shoe making machines in China. Backed by our team of experienced professionals who have long been engaged in the design and production of footwear manufacturing machinery, we are currently capable of supplying an extensive range of high performance injection molding machines for shoes making, such as rain boot making machine, slipper making machine, casual clog making machine, shoe sole making machine, upper strap making machine, as well as injection molding machine built for making other plastic or rubber items. If you have any questions or concerns about shoe machinery, please contact us today.
    Get in Touch
    Other Products

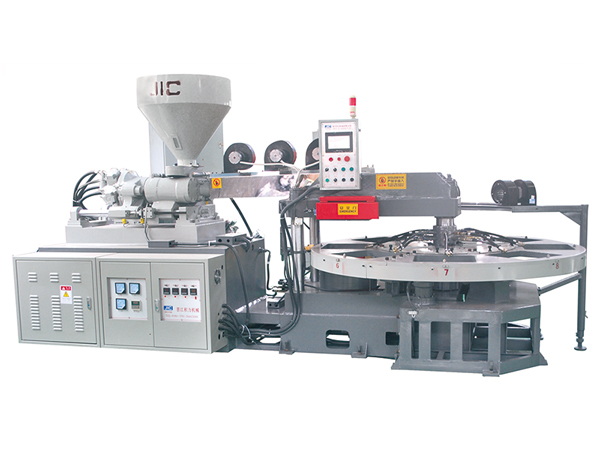

      1. One Color EVA Injection Molding Machine (Rotary Type)
      2. One Color EVA Injection Molding Machine (Rotary Type)
      1. Two Color PVC Slipper Injection Molding Machine
      2. Two Color PVC Slipper Injection Molding Machine
      1. Two Color TPE Shoe Cover Injection Molding Machine
      2. Two Color TPE Shoe Cover Injection Molding Machine

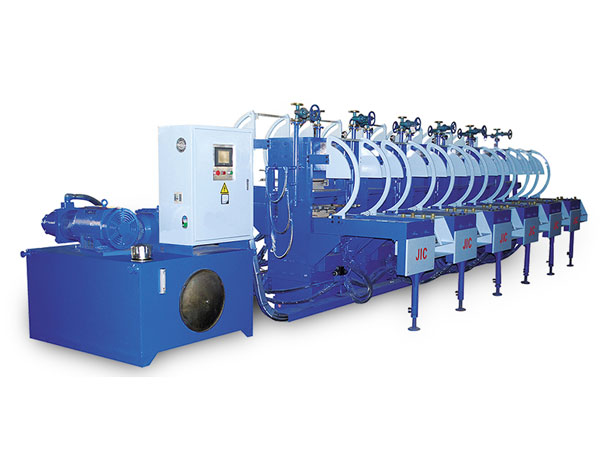

      1. Automatic Rubber Sole Compression Molding Machine
