Two Color PVC Slipper Injection Molding Machine
Rotary air blowing injection molding machine for producing plastic slippers and sandals
Raw material: PVC
Applications:

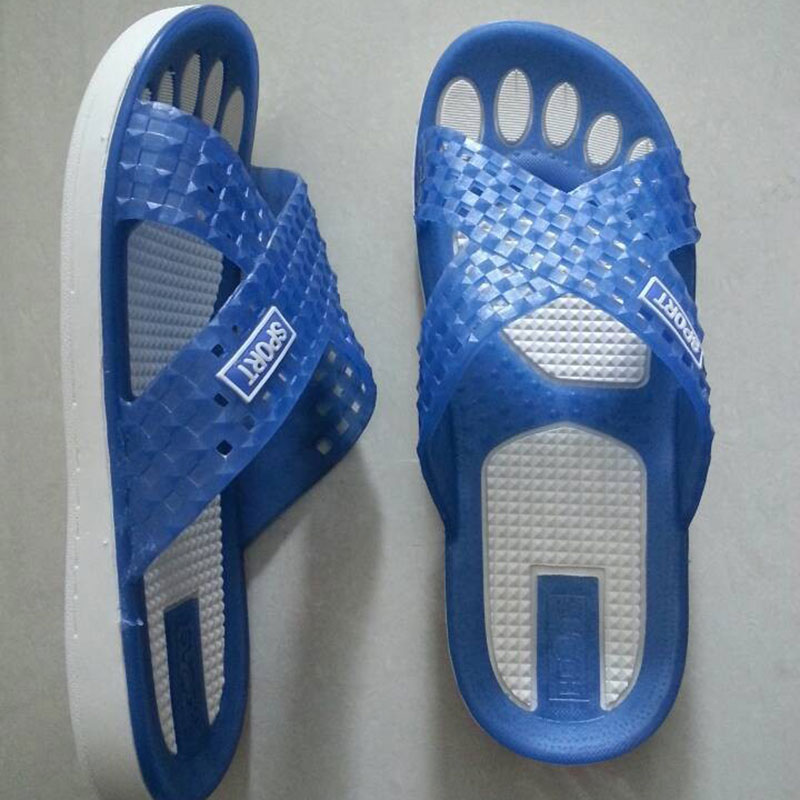

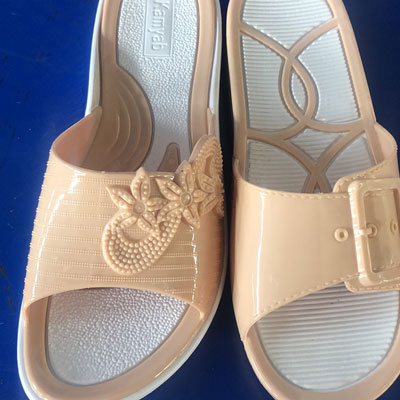

One-color/two-color slippers and sandals
- The PVC air blowing injection molding machine is used to produce one-color and two-color PVC slippers and sandals;
- The PCL control system is flexible to perform multiple tasks and operations;
- The operation system is designed to be easy to learn and convenient to operate;
- The slipper making machine features large injection volume and strong clamping force;
- The feeding nozzle switch saves working time and increases output;
- The dual-ratio hydraulic control valve enables adjustment of feeding speed and injection volume;

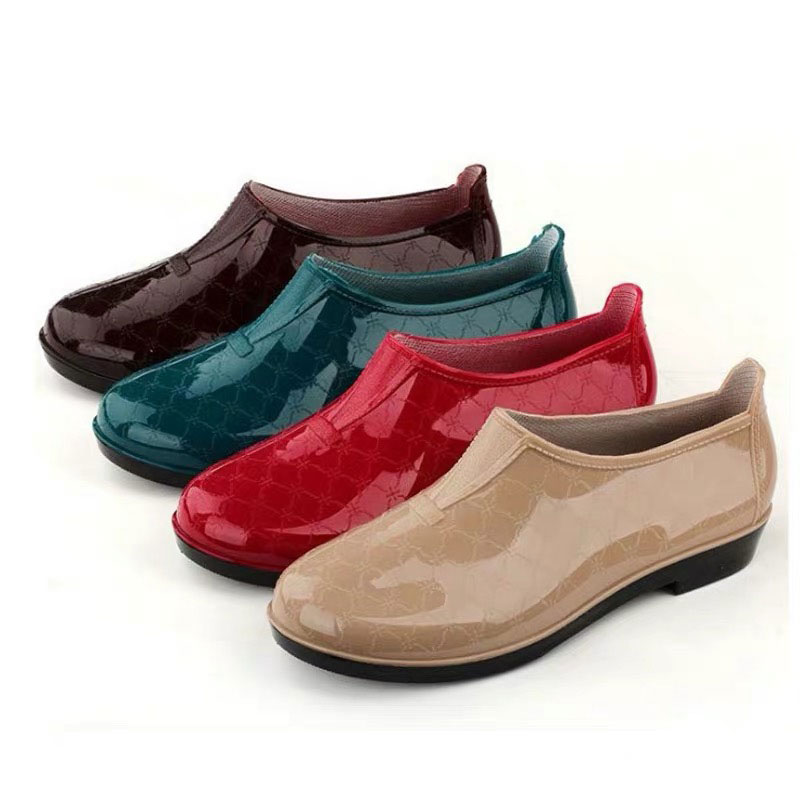

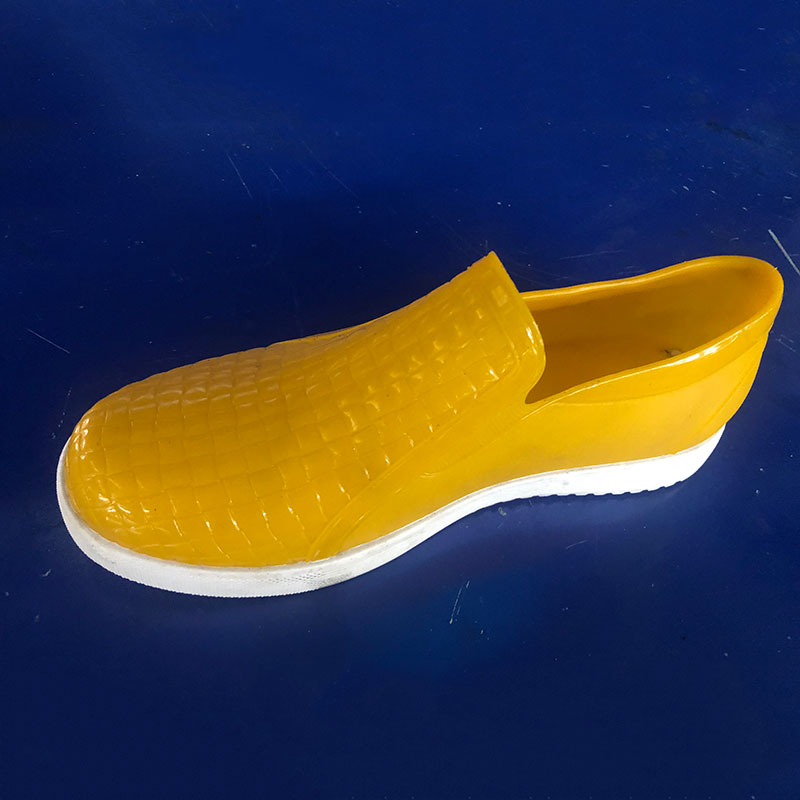

- The machine is used to produce V-shape shoes in one color and two colors.
- Products are made based on specific needs.
Request a Quote
Technical Specifications
Item | Unit | Specifications |
Model | | 720D | 724D |
Raw material | | PVC | PVC |
Max. number of stations | | 20 | 24 |
Clamping force | T | 80 | 80 |
Mold height | mm | 50-300 | 50-300 |
Screw diameter | mm | Ø70,Ø60 | Ø70,Ø60 |
Screw rotational speed | RPM | 0-150 | 0-150 |
Max. injection volume | cm³/cc | 770,565 | 770,565 |
Rated injection pressure | kg/cm² | 0-120 | 0-120 |
Motor power | kW | 18.5,15 | 18.5,15 |
Power of heating | kW | 13,11 | 13,11 |
Temperature setting | stage | 4 | 4 |
Max. mold size | mm | 400*220*300 | 400*220*300 |
Machine dimensions | mm | 8200*7550*2650 | 8300*7650*2650 |
Gross weight | kg | 14000 | 14500 |
Optional
Ancillary machines are provided to improve the productivity of shoe making machine.
Contact us for more information and choose the suitable ancillary machines to better support your shoes making business!
Mixing machine
Request a Quote
Thermostatic chamber
Request a Quote
Color mixer
Request a Quote
Air compressor
Request a Quote
Cooling tower
Request a Quote
Sole edge trimmer
Request a Quote
With years of experience in the footwear machinery industry, JIC has established itself as a leading manufacturer for shoe making machines in China. Backed by our team of experienced professionals who have long been engaged in the design and production of footwear manufacturing machinery, we are currently capable of supplying an extensive range of high performance injection molding machines for shoes making, such as rain boot making machine, slipper making machine, casual clog making machine, shoe sole making machine, upper strap making machine, as well as injection molding machine built for making other plastic or rubber items. If you have any questions or concerns about shoe machinery, please contact us today.
