    One Color PVC Slipper Injection Molding Machine

    Rotary air blowing injection molding machine for producing plastic slippers and sandals

    One Color PVC Slipper Injection Molding Machine
    • One Color PVC Slipper Injection Molding Machine
    • One Color PVC Slipper Injection Molding Machine
    • One Color PVC Slipper Injection Molding Machine
    • One Color PVC Slipper Injection Molding Machine
    • One Color PVC Slipper Injection Molding Machine
    • One Color PVC Slipper Injection Molding Machine

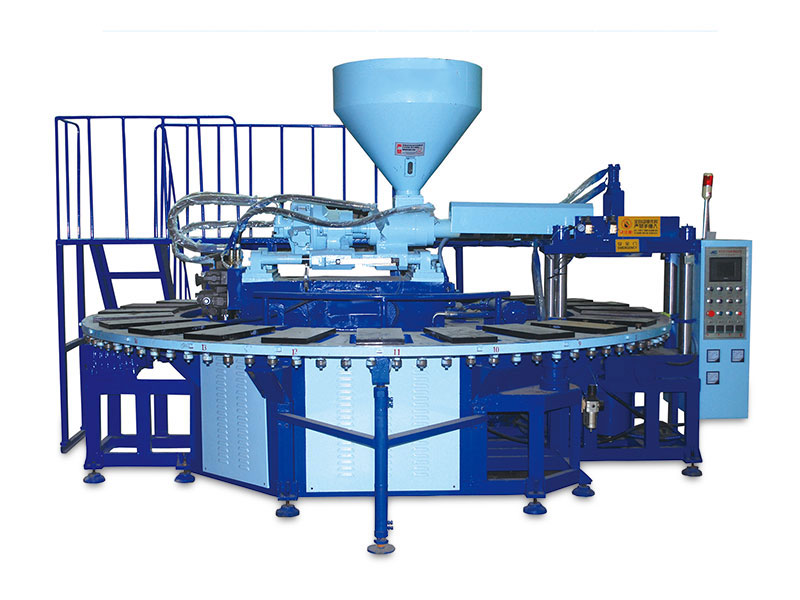

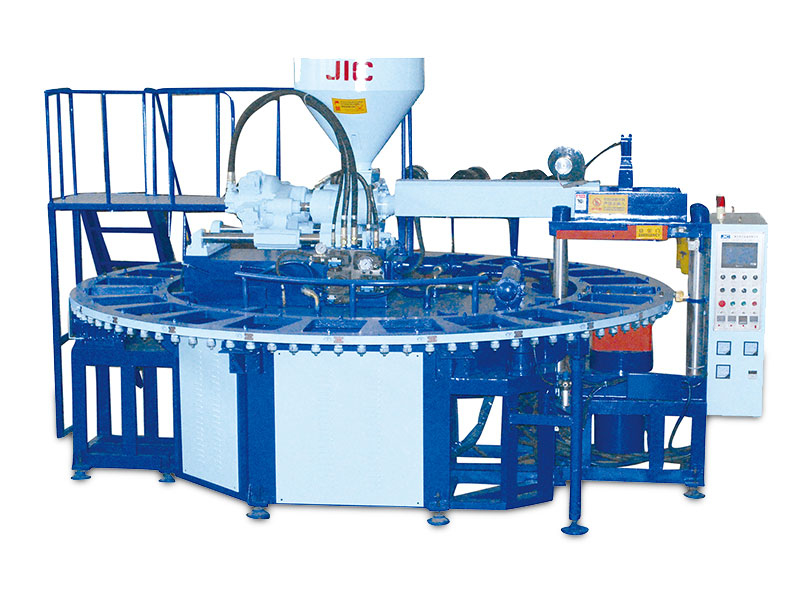

    One Color PVC Slipper Injection Molding Machine

    Rotary air blowing injection molding machine for producing plastic slippers and sandals

    • The built-in screw design occupies less space;
    • The slipper making machine is used to produce V-shaped products;
    • It features strong clamping force to ensure high product quality;

    Raw material: PVC

    Applications:

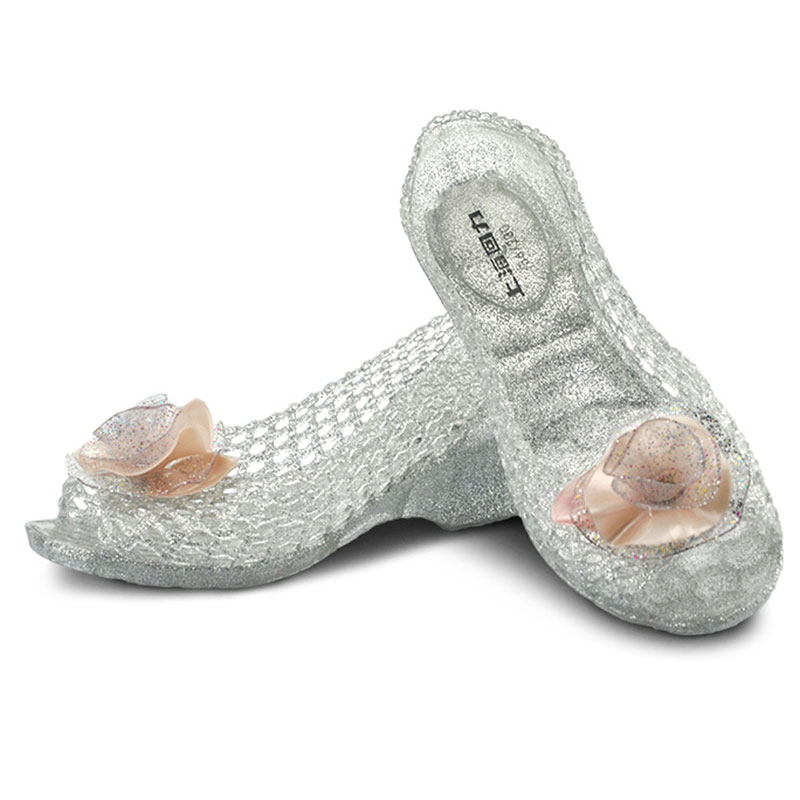

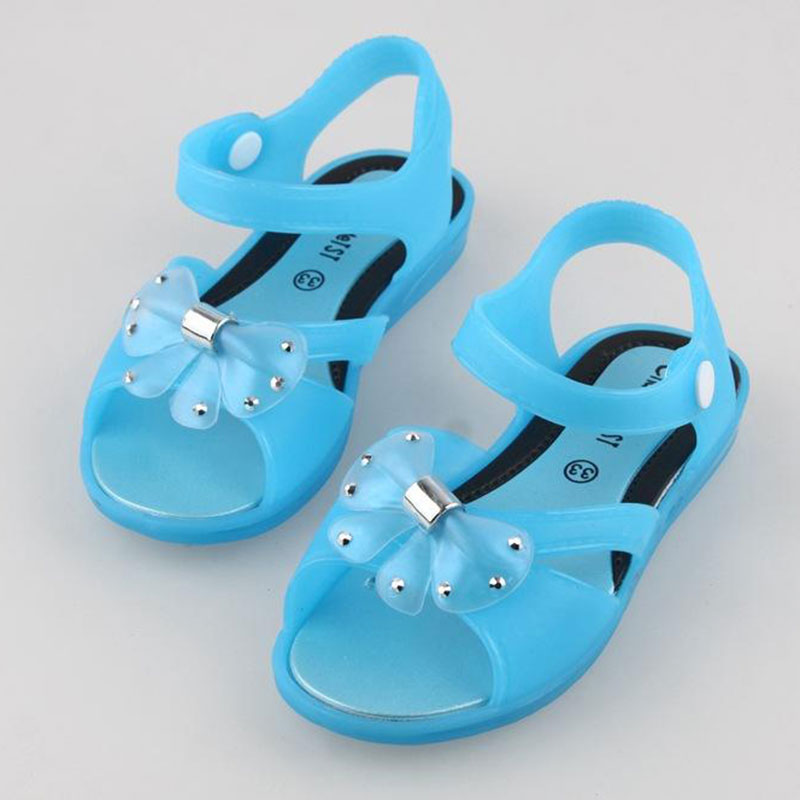

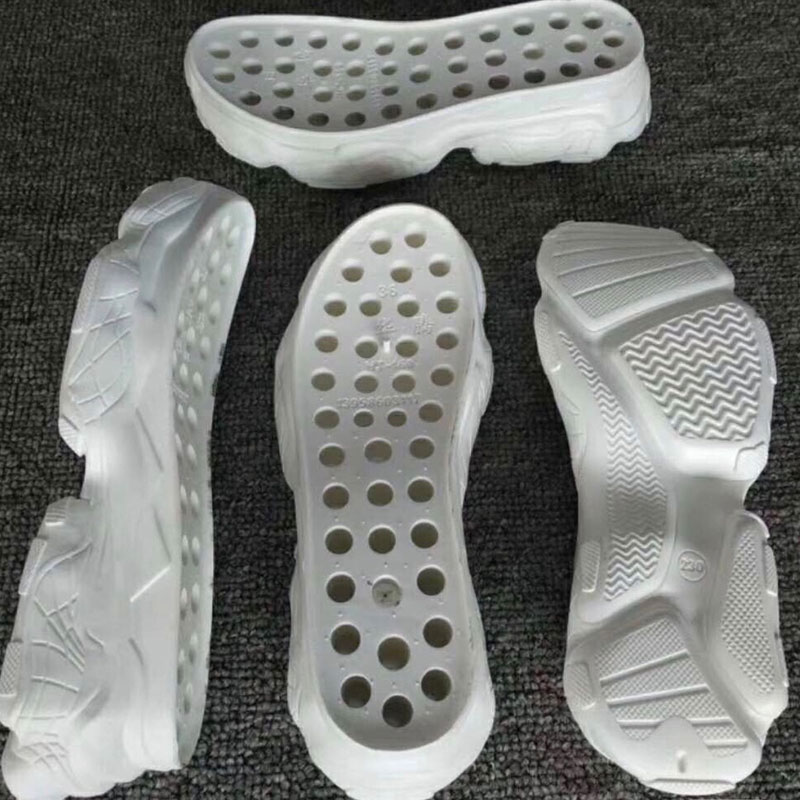

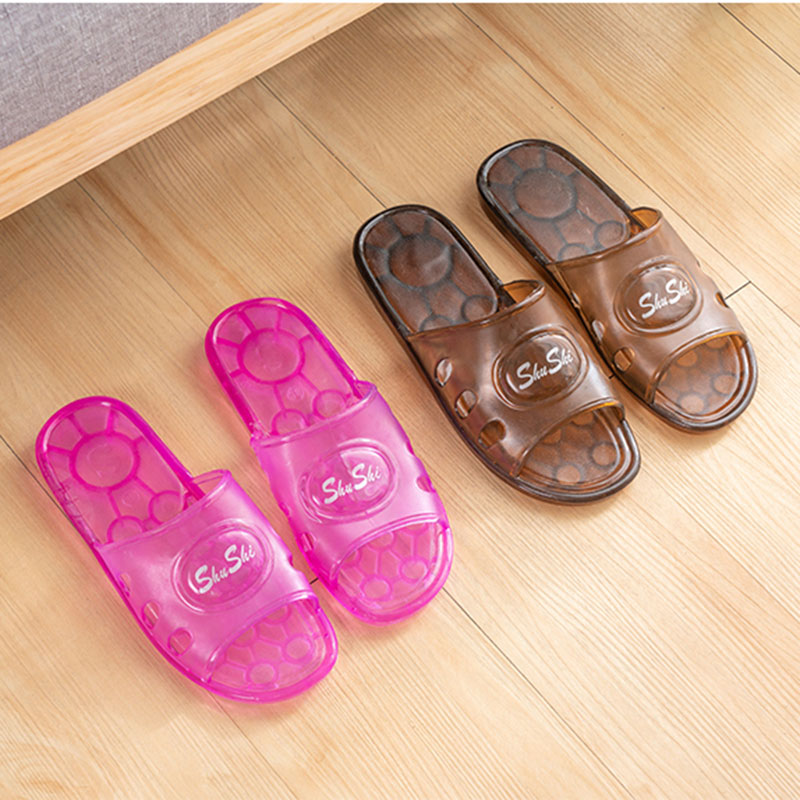

    The slipper injection molding machine is used to produce one-color V-shaped PVC products in an air-blowing manner, such as, soles, slippers, sandals and jelly shoes.

    Request a Quote
    Technical Specifications
    Item Unit Specifications
    Model 724A 724B 720AJ 724AJ
    Raw material PVC PVC PVC PVC
    Max. number of station 24 24 24 24
    Clamping force T 60 60 80 80
    Mold height mm 80-240 50-300 50-300 50-300
    Screw diameter mm Ø70 Ø70 Ø70 Ø70
    Screw rotational speed RPM 0-150 0-150 0-150 0-150
    Max. injection volume cm³/cc 770 770 770 770
    Rated injection pressure kg/cm² 0-120 0-120 0-120 0-120
    Motor power kW 18.5 18.5 18.5 18.5
    Power of heating kW 13 13 13 13
    Temperature setting stage 4 4 4 4
    Max. mold size mm 460*220*240 460*220*300 460*220*300 460*220*300
    Machine dimensions mm 4460*4050*2300 4460*4050*2300 4460*4050*2500 4460*4050*2500
    Gross weight kg 6000 6500 6800 7200
    Features
    • The air blowing injection molding machine is designed to produce one-color PVC soles, slippers, sandals and jelly shoes;
    • A PLC system provides the advantages that improve the efficiency, safety and reliability of industrial process;
    • The control panel function design is simple to learn and operate;
    • The slipper making machine features a large injection volume and a strong clamping force, which ensures high-quality soles;
    • A feeding nozzle switch saves working time and increases productivity;
    • The hydraulic system with a dual-ratio control valve enables flexible adjustment of the injection velocity, pressure and the feeding volume;
    • Products are made based on specific needs.
    Optional

    Ancillary machines are provided to improve the productivity of shoe making machine.
    Contact us for more information and choose the suitable ancillary machines to better support your shoes making business!

    • Mixing machine
    • Thermostatic chamber
    • Color mixer
    • Air compressor
    • Cooling tower
    • Crusher
    • Sole edge trimmer
