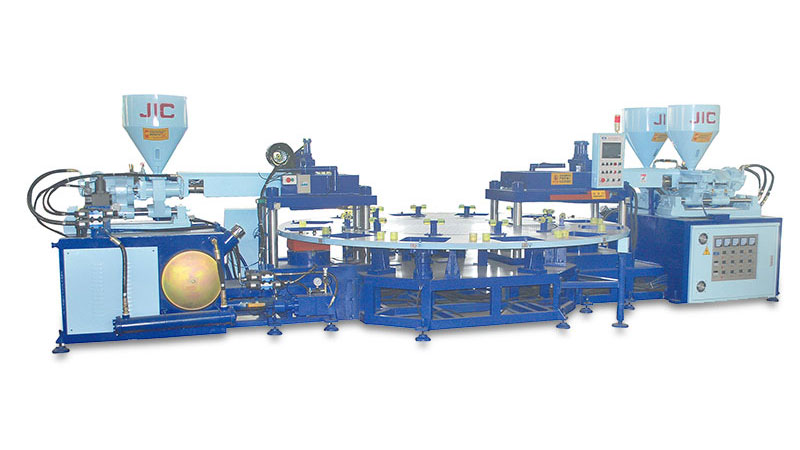

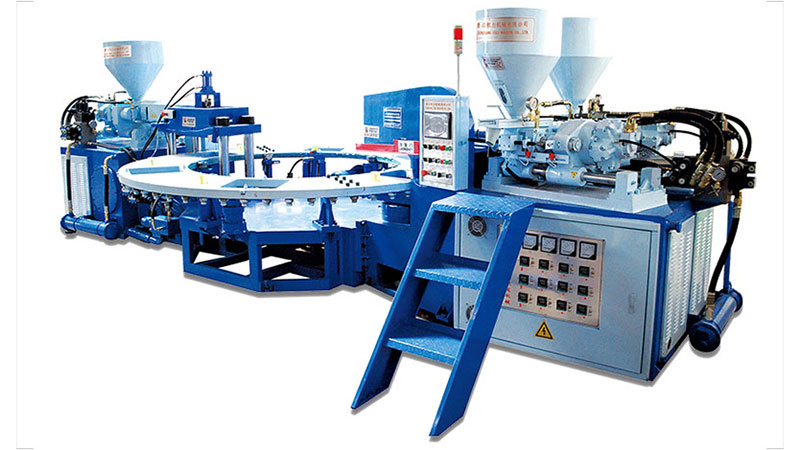

    Three Color PVC Slipper Upper Injection Molding Machine

    Rotary injection molding machine for producing plastic slipper uppers and flip flop straps

    Three Color PVC Slipper Upper Injection Molding Machine
    • Three Color PVC Slipper Upper Injection Molding Machine
    • Three Color PVC Slipper Upper Injection Molding Machine
    • Three Color PVC Slipper Upper Injection Molding Machine
    • Three Color PVC Slipper Upper Injection Molding Machine
    • Three Color PVC Slipper Upper Injection Molding Machine

    Three Color PVC Slipper Upper Injection Molding Machine

    Rotary injection molding machine for producing plastic slipper uppers and flip flop straps

    • The flexible use of the main machine and the auxiliary machine fits various scenarios;
    • The injection molding machine can be applied to produce multi-color slipper uppers;
    • It features high volume of output;
    • It is equipped with a safety device that automatically cut off the electricity in an emergency;

    Raw material: PVC

    Applications:

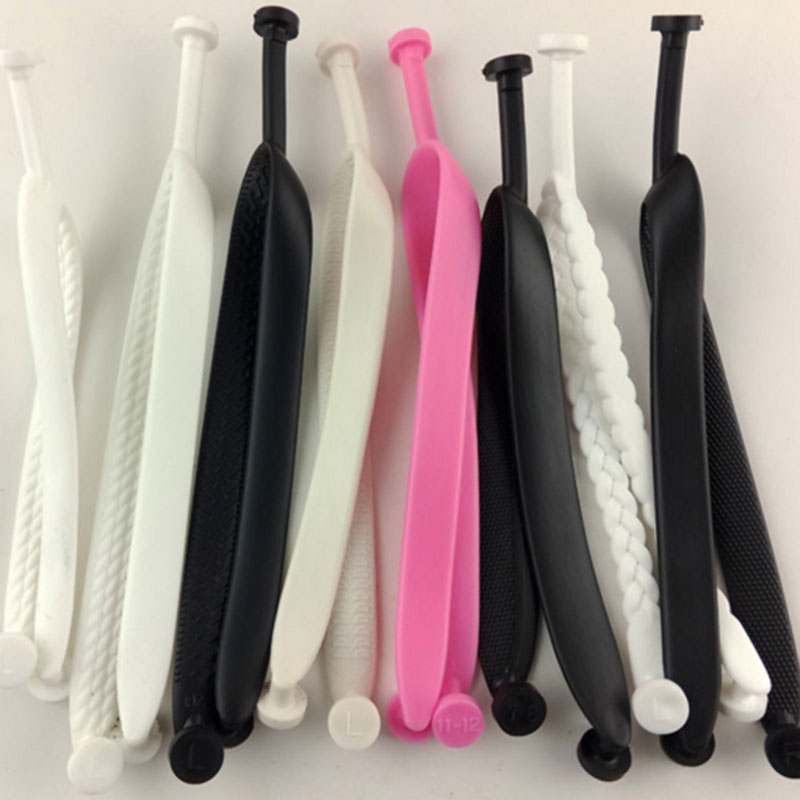

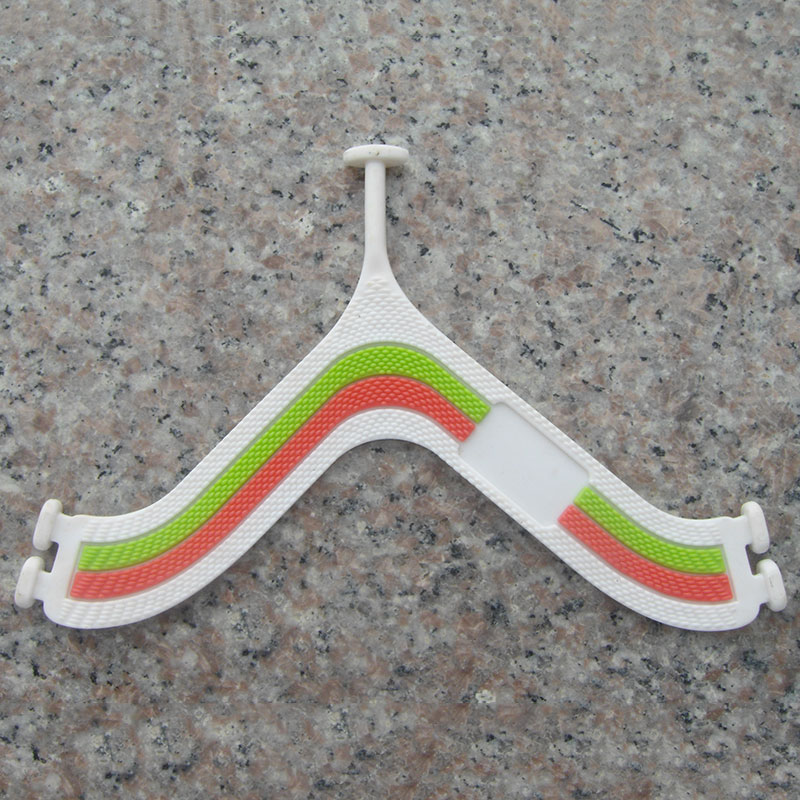

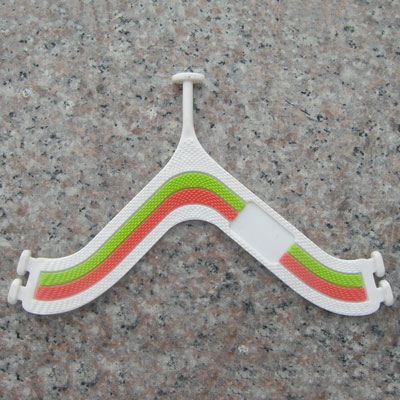

    PVC- made slipper uppers in one, two and three colors

    Request a Quote
    Technical Specifications
    Item Unit Specifications
    Model 506B/506BL 508B/508BL 510B/510BL
    Raw material PVC PVC PVC
    Max. number of stations 6 8 10
    Max. injection volume cm³/cc 300,250*2 300,250*2 300,250*2
    Rated injection pressure kg/cm² 0-120 0-120 0-120
    Power of electric heating kW 22 22 22
    Temperature setting stage 4 4 4
    Screw rotational speed RPM 0-190 0-190 0-190
    Screw diameter mm Φ50,Φ45*2 Φ50,Φ45*2 Φ50,Φ45*2
    Motor power kW 11*2 11*2 11*2
    Clamping force T 80 80 80
    Max. mold size mm 350*350*120 350*350*120 350*350*120
    Mold height mm 30-125 30-125 30-125
    Machine dimension mm 6600*2500*1800 6600*2500*1800 7000*3150*1800
    Machine weight kg 8100 8100 8400

    If you have any specific requirements, please contact us for customization.

    Features
    • The injection molding machine is used to produce PVC uppers of sandals and slippers in up to three colors;
    • The control system consists of an industrial interface, a PLC system and a touchscreen;
    • The dual-ratio hydraulic valve precisely controls the injection pressure and rate of flow;
    • The digital measurement system ensures high product quality;
    • The touch panel is designed to be simple and easy to operate;
    • The flexible use of the main machine and the auxiliary machine meets various production requirements;
    • The slipper upper making machine features low energy consumption, less labor cost and high productivity.
    Optional

    Ancillary machines are provided to improve the productivity of shoe making machine.
    Contact us for more information and choose the suitable ancillary machines to better support your shoes making business!

    • Mixing machine
    • Thermostatic chamber
    • Color mixer
    • Air compressor
    • Cooling tower
    • Crusher
    • Sole edge trimmer
    Mixing machine
    Request a Quote
    • Mixing machine
    • Mixing machine
    • Mixing machine
    Thermostatic chamber
    Request a Quote
    • Thermostatic chamber
    • Thermostatic chamber
    Color mixer
    Request a Quote
    • Color mixer
    • Color mixer
    • Color mixer
    • Color mixer
    • Color mixer
    Air compressor
    Request a Quote
    • Air compressor
    • Air compressor
    • Air compressor
    • Air compressor
    Cooling tower
    Request a Quote
    • Cooling tower
    • Cooling tower
    • Cooling tower
    • Cooling tower
    • Cooling tower
    Crusher
    Request a Quote
    • Crusher
    • Crusher
    Sole edge trimmer
    Request a Quote
    • Sole edge trimmer
    • Sole edge trimmer
    • Sole edge trimmer
